Features
1,Ball valve channel is smooth to facilitate pipe cleaning of the sweep line,slury and solid particles can be transported media.
2,PTFE and other materials as sealing,good lubrication and elasticity,triction with the ball is small,long service life.
3,Open and close quickly,simply open and close when the sphere rotate 90°,conveniently and quicky.
4,The fluid resistance of the ball valve fully open when the sphere channel,equal to the cross-sectional area of the body channels and the connection pipe,and a linear figured the medium flow through the valve,equivalent to flow through a straight pipe of the various types of valves the ball valve fluid path of least resistance.
5,Configured manually driven worm gear,pneumaic,electric(explosion proof)remote automatic control,a variety of conditions to meet the user's application requirements.
Meterial of main parts
阀体、阀盖 Body,bonnet |
阀杆、球体 Stem,ball | 密封面 Sealing surface |
填料 Packing |
WCB/不锈钢 Stainless steel |
不锈钢 Stainless steel | 不锈钢 Stainless steel 聚四氟乙烯 PTFE |
聚四氟乙烯 PTFE |
Main dimensions and weight
PN(MPa) | DN(mm) | L | D | D1 | D2 | Z-φd | H | b | f | D0 | 重量(kg) Weight |
2.5 | 15 | 130 | 95 | 65 | 45 | 4-φ14 | 103 | 16 | 2 | 100 | 3 |
20 | 1470 | 105 | 75 | 55 | 4-φ14 | 112 | 16 | 2 | 160 | 4 | |
25 | 150 | 115 | 85 | 65 | 4-φ14 | 123 | 16 | 2 | 160 | 5 | |
32 | 165 | 135 | 100 | 78 | 4-φ18 | 150 | 18 | 3 | 250 | 8 | |
40 | 180 | 145 | 110 | 85 | 4-φ18 | 156 | 18 | 3 | 250 | 11 | |
50 | 200 | 160 | 125 | 100 | 4-φ18 | 172 | 20 | 3 | 350 | 14 | |
65 | 220 | 180 | 145 | 120 | 8-φ18 | 197 | 22 | 3 | 350 | 20 | |
80 | 250 | 195 | 160 | 135 | 8-φ18 | 222 | 22 | 3 | 450 | 28 | |
100 | 320 | 230 | 190 | 160 | 8-φ23 | 253 | 24 | 4 | 450 | 36 | |
125 | 400 | 270 | 220 | 188 | 8-φ25 | 286 | 28 | 4 | 600 | 62 | |
150 | 400 | 300 | 250 | 218 | 8-φ25 | 275 | 30 | 4 | 800 | 80 |

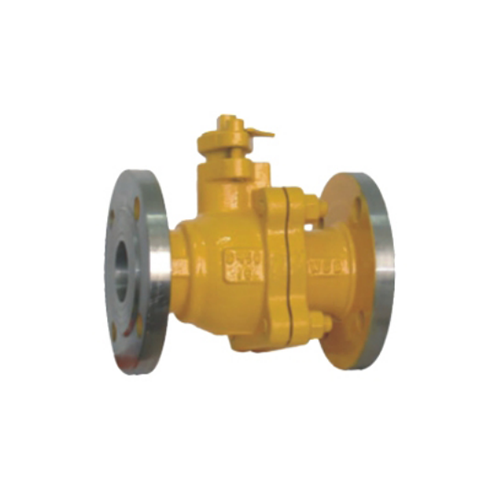

Natural Gas Special Ball valve – Comprehensive Guide
The Natural Gas Special Ball Valve is specifically engineered for controlling the flow of natural gas in pipelines safely and efficiently. Designed for residential, commercial, and industrial applications, this valve combines high durability, precise flow regulation, and leak-proof sealing to meet strict safety and operational standards. Manufactured using stainless steel or high-grade carbon steel, it ensures corrosion resistance, long service life, and reliable performance under high pressure.
Ideal for gas distribution networks, processing plants, industrial energy systems, and residential gas installations, this valve is a crucial component for safe and efficient gas management.
Leak-Proof Design: Precision-engineered ball ensures tight sealing and safe operation.
High-Pressure Tolerance: Suitable for pipelines up to ANSI Class 600 / PN40.
Corrosion Resistance: Stainless steel or treated carbon steel body prevents rust and degradation.
Smooth Operation: Easy manual or actuated control with minimal torque.
Long Service Life: Durable components minimize wear, ensuring extended usage.
Compliance: Meets international safety and quality standards for natural gas applications.
| Feature | Specification / Range |
|---|---|
| Body Material | Stainless Steel 304/316, Carbon Steel |
| Ball Material | Stainless Steel |
| Seal Material | PTFE, PFA, or Metal-to-Metal |
| Pressure Rating | PN10 – PN40 / ANSI Class 150 – 600 |
| Temperature Range | -20°C to 200°C (-4°F to 392°F) |
| End Connection | Flanged, Threaded, Butt Weld |
| Operation Type | Manual, Electric, Pneumatic |
| Suitable Medium | Natural Gas, LPG, Industrial Gases |
Proper handling and transportation are essential to ensure the valve arrives in optimal condition:
Packaging: Each valve is wrapped in anti-rust film and protective plastic.
Outer Carton or Crate: Use reinforced corrugated cartons or wooden crates with cushioning to prevent damage.
Thread and Flange Protection: Plastic caps or plugs prevent contamination and physical damage.
Labeling: Include model number, material, pressure rating, and inspection certificate on the outer packaging.
Handling Instructions: Avoid dropping, stacking excessively, or exposing to moisture during transit.
Storage: Store valves in a dry, ventilated area away from corrosive chemicals until installation.
| Component | Description |
|---|---|
| Inner Protection | Anti-rust film or plastic wrap |
| Outer Packaging | Wooden crate or reinforced corrugated carton |
| Cushioning | Foam inserts or cardboard padding |
| End Protection | Plastic caps / plugs |
| Weight Consideration | Based on valve size and material |

Correct installation ensures optimal performance and safety:
Pre-Installation Checks: Confirm the valve is suitable for pipeline size, pressure, and gas type.
Alignment: Ensure pipeline connections are aligned to prevent stress on flanges or threads.
Torque: Apply manufacturer-recommended torque values on flanged or threaded connections.
Orientation: Install the valve in the correct flow direction as indicated by the arrow on the body.
Actuator Connection: For electric or pneumatic operation, follow wiring or air line instructions precisely.
Leak Testing: Conduct pressure tests after installation to confirm leak-free operation.
(For illustration purposes, include a simple schematic showing valve body, ball, seals, flanges, and actuator connection. This can be added to the website or product manual.)
Always depressurize the pipeline before operating or performing maintenance.
Use personal protective equipment (PPE), including gloves and eye protection.
Avoid sudden valve opening or closing to prevent pressure shock.
Ensure proper lubrication of stem and moving components if required.
Do not exceed the rated pressure and temperature limits.
Follow local safety codes and standards for natural gas systems.
Regular maintenance ensures reliable operation and extended service life:
| Task | Frequency (Normal Use) | Frequency (Heavy Duty / High Pressure) |
|---|---|---|
| Visual Inspection | Weekly | Daily |
| Functional Testing | Monthly | Weekly |
| Seal and Seat Inspection | Every 6 months | Every 3 months |
| Lubrication | Every 6 months | Every 3 months |
| Comprehensive Overhaul | Every 12–18 months | Every 6–12 months |
| Issue | Possible Cause | Solution |
|---|---|---|
| Leakage at stem or body | Worn seals or gasket | Replace seals/gasket |
| Hard to operate | Debris or corrosion | Flush pipeline, clean, lubricate |
| Ball not sealing properly | Damaged ball or seat | Replace ball or seat |
| Pressure drop in system | Partial blockage or misalignment | Inspect pipeline and valve, clear debris |
Many clients have highlighted the reliability, durability, and safety of the natural gas special ball valve:
“Installed in our industrial gas network, the valve performs flawlessly with zero leakage after 2 years.” – Industrial Energy Client
“The insulation and smooth operation help us reduce energy loss and maintenance costs.” – HVAC System Integrator
“The valve is robust, corrosion-resistant, and easy to install. Highly recommended for high-pressure gas pipelines.” – Oil & Gas Plant Operator
Customer satisfaction is a testament to the valve’s high quality, safety standards, and operational efficiency.
The Natural Gas Special Ball Valve is an essential component for safe, efficient, and durable natural gas systems. Its robust construction, leak-proof design, and ease of operation make it suitable for residential, commercial, and industrial applications.
By following proper transportation, installation, and maintenance procedures, users can ensure long-lasting performance, operational safety, and minimal downtime. With positive client feedback and proven reliability, this valve is a cost-effective and dependable choice for natural gas flow control.
