Insulation Ball valve – Complete Product and Maintenance Guide

Introduction

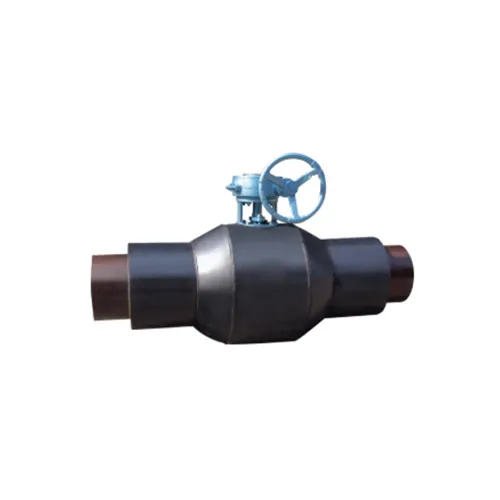

The Insulation Ball Valve is an advanced industrial valve designed to provide precise flow control while minimizing heat loss or gain in piping systems. With an integrated insulation layer, this valve is ideal for steam, hot water, chemical pipelines, and industrial heating applications. Manufactured from high-quality materials such as stainless steel, carbon steel, or alloy steel, the insulation ball valve ensures long-lasting performance, leak-proof operation, and corrosion resistance.

Its energy-efficient design not only improves operational performance but also reduces energy consumption, making it a cost-effective solution for oil and gas, chemical processing, HVAC, and industrial heating systems.

1. Key Features and Benefits

Product Highlights

• Integrated Insulation: Prevents heat loss or gain, improving energy efficiency.

• High Durability: Resistant to corrosion, high pressure, and extreme temperatures.

• Reliable Sealing: Precision-engineered ball ensures leak-proof performance.

• Low Maintenance: Minimal moving parts reduce servicing requirements.

• Wide Applicability: Suitable for steam, hot water, gas, oil, and chemical pipelines.

Performance Table

2. Energy Efficiency and Thermal Performance

The insulation ball valve significantly reduces energy loss in high-temperature or thermal-sensitive systems:

• Minimizes Heat Transfer: Integrated insulation prevents heat from escaping or entering the pipeline.

• Reduces Energy Costs: Less heat loss leads to lower fuel or electricity consumption for heating systems.

• Environmental Benefits: Reduced energy use lowers carbon emissions.

• Enhanced System Stability: Maintains consistent fluid temperature for better process control.

Tip: Insulation thickness and material type should be selected based on operating temperature and fluid type for optimal energy savings.

3. Applications

Insulation ball valves are highly versatile and used across multiple industries:

• Oil and Gas: Controls flow in pipelines carrying steam, crude oil, or natural gas.

• Chemical Processing: Handles corrosive and high-temperature fluids safely.

• HVAC Systems: Regulates hot water and steam in heating and cooling circuits.

• Industrial Heating: Maintains thermal efficiency in hot water and thermal fluid systems.

• Food and Beverage Industry: Ensures temperature stability in process pipelines.

Case Study Examples

4. Maintenance and Troubleshooting

Proper maintenance is crucial to ensure long-term performance of insulation ball valves.

Routine Maintenance Methods

1. Visual Inspection: Check the valve body, insulation layer, and connections for cracks or damage.

2. Seal Check: Inspect ball seats and sealing rings for wear or deformation.

3. Lubrication: Apply recommended lubricants to the stem and moving components.

4. Operational Testing: Open and close the valve to ensure smooth operation.

5. Cleaning: Flush pipelines periodically to prevent sediment buildup.

Maintenance Frequency

Troubleshooting Guide

Safety Tip: Always depressurize the system and use PPE before performing maintenance or troubleshooting.

5. Installation Guidelines

Proper installation ensures optimal thermal efficiency and valve performance:

1. Verify that the valve is suitable for the operating temperature, pressure, and fluid type.

2. Align valve connections carefully to avoid stress on flanges or threaded ends.

3. Apply torque according to manufacturer specifications.

4. For electrically or pneumatically actuated valves, follow wiring and control instructions precisely.

5. Conduct a post-installation leak and performance test.

6. Packaging and Shipping

• Individual Protection: Each valve wrapped in anti-rust film and protective plastic.

• Outer Packaging: Corrugated carton or wooden crate with cushioning material.

• Thread / End Protection: Plastic caps or plugs prevent damage.

• Labeling: Product specifications, model number, material, and inspection certificate included.

Shipping Table

7. Conclusion

The insulation ball valve is a reliable, energy-efficient, and durable solution for industrial and commercial fluid systems. By implementing proper maintenance, troubleshooting, and cleaning practices, users can ensure long-lasting, leak-free performance.

Its integrated insulation, high-temperature tolerance, corrosion resistance, and energy-saving capabilities make it ideal for applications in oil and gas, chemical processing, HVAC, industrial heating, and food processing industries.

Investing in an insulation ball valve ensures operational efficiency, reduced energy costs, and extended service life, providing significant advantages for both industrial processes and energy management.
