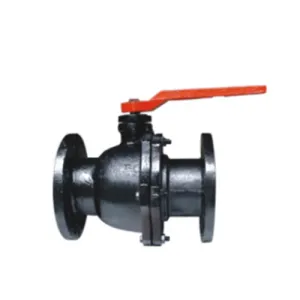

Ball Valve: An Overview A ball valve is a type of quarter-turn valve that uses a hollow, perforated, and pivoting ball to control the flow of fluids through it. When the valve is open, the ball’s hole aligns with the flow direction, allowing fluid to pass. When closed, the ball rotates 90 degrees, blocking the flow completely. Ball valves are widely used in industrial, commercial, and residential applications due to their reliability, durability, and ease of operation. Design and Components The main components of a ball valve include: 1. Body – The outer casing, typically made of metal (such as stainless steel, brass, or carbon steel) or plastic (like PVC or CPVC), which houses the internal parts. 2. Ball – A spherical disc with a hole (bore) through its center. The ball can be floating or trunnion-mounted, depending on the design. 3. Seats – Rings made of resilient materials (PTFE, nylon, or metal) that ensure a tight seal between the ball and the body. 4. Stem – A shaft connected to the ball that transmits the rotational force from the handle or actuator. 5. Handle or Actuator – Used to manually or automatically rotate the ball. Handles are typically lever-operated, while actuators can be pneumatic, electric, or hydraulic. Types of Ball Valves 1. Floating Ball Valve – The ball is held in place by compression from the seats, allowing slight movement for a tight seal. 2. Trunnion Ball Valve – The ball is anchored at the top and bottom, reducing operating torque and making it suitable for high-pressure applications. 3. Full Port vs. Reduced Port – Full port valves have a bore size matching the pipe diameter, minimizing pressure drop, while reduced port valves have a smaller bore, increasing flow resistance. 4. Multi-Port Ball Valve – Features multiple flow paths (e.g., 3-way or 4-way) for diverting or mixing flows. 5. V-Port Ball Valve – The ball has a V-shaped bore for precise flow control, often used in throttling applications. Advantages - Quick Operation – A 90-degree turn fully opens or closes the valve. - Excellent Shutoff – Provides bubble-tight sealing, minimizing leakage. - Low Maintenance – Simple design with fewer moving parts reduces wear. - Versatility – Suitable for liquids, gases, and slurries across various temperatures and pressures. Applications Ball valves are used in industries such as: - Oil & Gas – Pipeline shutoff and control. - Water Treatment – Flow regulation in distribution systems. - Chemical Processing – Handling corrosive or high-purity fluids. - HVAC – Controlling refrigerant and water flow. Conclusion Ball valves are essential in fluid control systems due to their efficiency, durability, and adaptability. Their simple yet robust design makes them a preferred choice for many applications, ensuring reliable performance in demanding environments.
