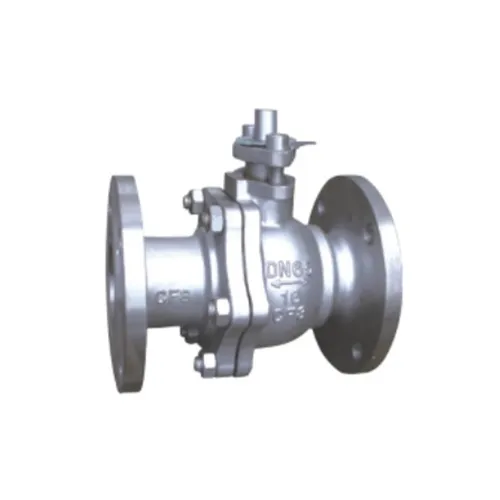

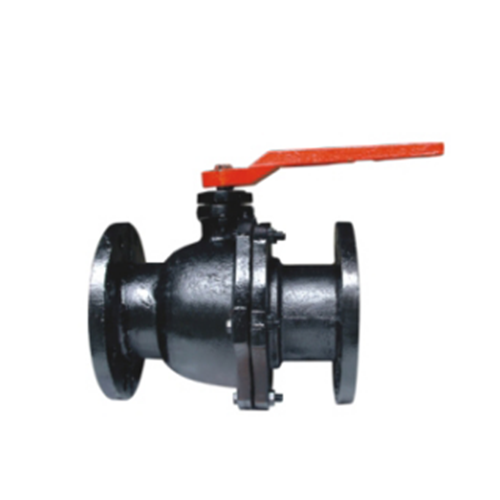

Ball valve: Complete Guide for Industrial Applications

Introduction

The ball valve is a widely used industrial valve known for its versatile performance, tight sealing, and simple operation. Featuring a spherical ball with a hollow center that rotates within the valve body, it allows for quick shut-off, precise flow control, and reliable isolation. Ball valves are integral in oil and gas, chemical processing, water treatment, HVAC, and industrial manufacturing, providing long service life, low maintenance, and operational efficiency.

This guide provides in-depth information on maintenance, applications, installation procedures, and problem-solving solutions, serving as a complete resource for engineers, operators, and procurement teams.

Key Features of Ball Valve

• Quick Operation: 90-degree turn allows fast open/close.

• Tight Sealing: Ensures minimal leakage under high pressure.

• Durable Construction: Materials such as stainless steel, carbon steel, and brass enhance longevity.

• Versatile Actuation: Manual, electric, or pneumatic options available.

• Minimal Pressure Drop: Streamlined flow path maintains efficiency.

Maintenance and Care

Regular maintenance ensures optimal performance and extended service life.

Routine Maintenance Tasks

Best Practices

• Avoid excessive torque when operating the handle to prevent damage.

• Keep records of inspections and maintenance activities.

• Replace worn seats and seals promptly to prevent leakage.

• Use manufacturer-approved lubricants and spare parts.

Applicable Industries and Usage

Oil and Gas

• Provides reliable isolation for pipelines and storage tanks.

• Suitable for high-pressure applications and corrosive media.

Chemical Processing

• Handles aggressive chemicals when constructed from stainless steel or alloy materials.

• Ensures safe flow control and leak prevention.

Water Treatment and Distribution

• Used in municipal water supply and wastewater systems.

• Protects pumps and filtration equipment from backflow.

HVAC Systems

• Controls chilled water and hot water circuits.

• Maintains energy efficiency and safe system operation.

Industrial Manufacturing

• Regulates fluids in production processes, cooling systems, and lubrication lines.

Quick Installation Guide

Proper installation is crucial for long-term reliability of ball valves.

Preparation

• Verify valve size, pressure rating, and material compatibility with the system.

• Inspect valve for shipping damage.

• Clean pipeline and remove debris before installation.

Step-by-Step Installation

Installation Tips:

• Use gaskets compatible with media and temperature ratings.

• Ensure accessibility for future maintenance and inspection.

• Avoid excessive force to prevent damage to the ball and seat.

Troubleshooting and Solutions

Technical Specifications

Advantages of Ball Valves

• Durability: Long-lasting performance under high pressure and temperature.

• Reliability: Tight sealing prevents leakage and ensures system safety.

• Low Maintenance: Minimal internal components reduce wear and maintenance needs.

• Fast Operation: Quarter-turn design allows rapid opening and closing.

• Versatility: Suitable for a wide range of industries and media types.

Conclusion

The ball valve is an essential component for industrial fluid control, offering quick operation, reliable sealing, and minimal pressure drop. By following proper installation, maintenance, and operational guidelines, users can ensure long-term efficiency, safety, and cost-effective operation.

With various material options, actuation methods, and sizes, ball valves are flexible solutions for industries ranging from oil and gas to water treatment and HVAC systems, providing dependable flow control and isolation in modern industrial applications.
