Swing start check valve: Complete Guide for Industrial Applications

Introduction

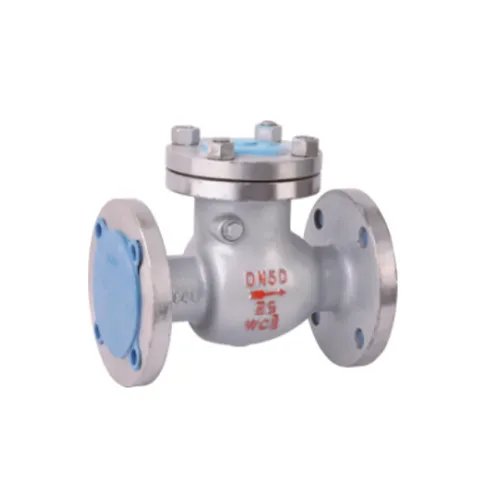

The swing start check valve is a widely used valve designed to prevent backflow and protect pipelines and equipment in various industrial systems. Its swinging disk mechanism allows forward flow to lift the disk and reverse flow to close it automatically, ensuring unidirectional flow with minimal pressure loss.

These valves are commonly applied in water supply networks, wastewater treatment, chemical plants, oil and gas pipelines, and HVAC systems. This guide covers performance testing, installation steps, environmental compliance, and operational instructions, providing a complete resource for engineers, operators, and procurement teams.

Key Features of Swing Start Check Valve

• Swinging disk design for smooth flow and automatic closure.

• Minimal pressure drop due to streamlined flow path.

• Durable construction with corrosion-resistant materials for extended service life.

• Versatile application across water, chemical, oil, gas, and HVAC systems.

• Low maintenance requirements due to simple internal components.

Performance Testing

Proper performance testing ensures that a swing start check valve meets operational requirements before installation.

Standard Testing Procedures

Key Performance Metrics

• Closing time: Should respond immediately to reverse flow.

• Leakage rate: Typically ≤ 0.5% of rated flow for soft-seated valves.

• Pressure rating: Must meet design standard (e.g., PN16, Class 150).

• Temperature rating: Compatible with media and system design conditions.

Installation Steps

Correct installation is crucial for the safe and efficient operation of swing start check valves.

Preparation

• Verify valve size and pressure rating match the pipeline system.

• Ensure the pipeline is clean and free of debris.

• Inspect the valve for shipping damage.

Step-by-Step Installation Guide

Installation Tips:

• Avoid excessive torque on flanges to prevent damage.

• If installed vertically, ensure flow direction is upward for vertical lift.

• Use gaskets compatible with system media and pressure rating.

Environmental Compliance

Swing start check valves are designed to meet global environmental and safety standards.

Common Certifications

• ISO 14001: Environmental management system compliance.

• RoHS Directive: Restriction of hazardous substances in valve materials.

• WRAS / NSF: Certification for drinking water safety.

• CE Marking: Compliance with EU directives.

Sustainable Design Considerations

• Materials selected for low corrosion and long service life reduce waste.

• Minimal pressure drop reduces energy consumption in pumping systems.

• Recyclable valve body materials such as ductile iron or stainless steel.

Operational Instructions

Proper operation ensures swing start check valves perform reliably throughout their service life.

Operating Guidelines

1. Flow Direction: Ensure valve is installed with flow in the correct direction (arrow marking).

2. Gradual Pressure Changes: Avoid sudden opening or closing to reduce water hammer and stress.

3. Temperature and Pressure Limits: Operate within valve-rated specifications.

4. Periodic Cycling: Infrequently used valves should be cycled periodically to prevent disk sticking.

5. Inspection: Check for signs of wear, corrosion, or leakage regularly.

Troubleshooting Table

Applications of Swing Start Check Valve

Water Supply and Distribution

• Prevents backflow and protects pumps, filters, and pipelines.

• Suitable for potable water, wastewater, and irrigation systems.

Oil & Gas

• Protects pumping stations, pipelines, and storage tanks from reverse flow.

• Handles crude oil, refined products, and natural gas safely.

Chemical and Industrial Processing

• Resistant to corrosive fluids with material upgrades.

• Ensures unidirectional flow in chemical pipelines and reactors.

HVAC Systems

• Prevents backflow in chilled and hot water circuits.

• Maintains energy efficiency and system safety.

Maintenance and Inspection

Regular maintenance is key to long-term performance of swing start check valves.

Maintenance Schedule

Best Practices:

• Keep a log of all inspections and maintenance activities.

• Replace damaged components promptly to avoid leakage.

• Consider actuator integration for automated monitoring in critical pipelines.

Conclusion

The swing start check valve is a highly reliable solution for preventing reverse flow, reducing pressure loss, and protecting industrial pipelines. By following proper performance testing, installation procedures, environmental compliance, and operational guidelines, users can ensure long-term reliability, safety, and efficiency.

With options for material upgrades, soft-seating, and automation, swing start check valves can meet the demands of modern water, chemical, oil & gas, and HVAC systems, providing a sustainable and efficient solution for industrial fluid control.
