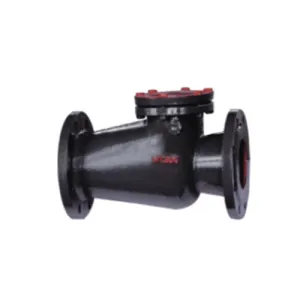

Industrial Swing Check Valve: Overview and Applications An industrial swing check valve is a critical component in piping systems, designed to allow fluid flow in one direction while preventing backflow. Its simple yet effective design makes it widely used in various industries, including oil and gas, water treatment, chemical processing, and power generation. Design and Working Principle The swing check valve consists of a disc or flap mounted on a hinge or trunnion, which swings freely to permit forward flow. When fluid flows in the intended direction, the pressure pushes the disc open. If reverse flow occurs, the disc swings back into the closed position, sealing against the seat to prevent backflow. Gravity and fluid dynamics assist in the closing action, ensuring a tight seal. Key components include: - Body: Typically made of cast iron, stainless steel, or other durable materials to withstand high pressures and corrosive environments. - Disc: The moving part that seals against the seat; often coated or constructed from wear-resistant materials. - Hinge Pin: Allows the disc to pivot smoothly. - Seat: The sealing surface where the disc rests when closed, ensuring leak-proof performance. Advantages - Low Pressure Drop: The disc fully opens in forward flow, minimizing resistance. - Quick Response: The swinging mechanism reacts rapidly to flow changes. - Versatility: Suitable for horizontal or vertical (upward flow) installations. - Low Maintenance: Simple design with fewer moving parts reduces wear. Applications - Water & Wastewater Systems: Prevents backflow in pipelines and pumping stations. - Oil & Gas: Used in pipelines, refineries, and offshore platforms to protect equipment. - Chemical Processing: Resistant materials handle aggressive fluids. - Power Plants: Ensures unidirectional flow in steam and cooling systems. Limitations - Water Hammer Risk: Rapid disc closure may cause pressure surges in high-velocity systems. - Orientation Sensitivity: Requires proper installation to function effectively. Conclusion Industrial swing check valves are essential for maintaining system integrity by preventing reverse flow. Their reliability, efficiency, and adaptability make them indispensable across multiple industries. Proper selection based on fluid type, pressure, and installation conditions ensures optimal performance and longevity.
