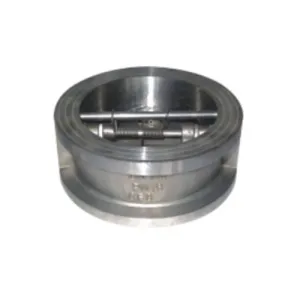

Stainless Steel Butterfly Check Valve: Overview and Applications A stainless steel butterfly check valve is a critical component in fluid control systems, designed to allow unidirectional flow while preventing backflow. Its compact, lightweight design and reliable performance make it suitable for a wide range of industries, including water treatment, chemical processing, oil and gas, food and beverage, and HVAC systems. Design and Construction The valve consists of a circular disc (the "butterfly") mounted on a hinge or pivot within a stainless steel body. When fluid flows in the desired direction, the disc swings open, offering minimal resistance. If reverse flow occurs, the disc automatically closes due to gravity, spring assistance, or fluid pressure, ensuring a tight seal. Key features include: - Material: Made from high-grade stainless steel (e.g., 304, 316, or 316L), providing excellent corrosion resistance, durability, and compatibility with aggressive media. - Compact Design: The wafer-style or lug-style body allows easy installation between flanges without requiring additional space. - Low Pressure Drop: The streamlined disc minimizes turbulence and energy loss, enhancing system efficiency. - Quick Response: The lightweight disc ensures rapid closure, reducing water hammer effects. Types of Butterfly Check Valves 1. Swing-Type: The disc pivots on a hinge, swinging open or shut based on flow direction. 2. Spring-Assisted: A spring ensures immediate closure even at low pressures. 3. Dual-Plate (Double Disc): Two semi-circular discs reduce shock and vibration in high-flow systems. Advantages - Corrosion Resistance: Ideal for harsh environments, including seawater, acids, and high-temperature fluids. - Low Maintenance: Stainless steel resists scaling and fouling, reducing downtime. - Cost-Effective: Lower weight and simpler installation compared to other check valves. - Versatility: Suitable for horizontal or vertical pipelines, depending on design. Applications - Water/Wastewater: Prevents backflow in pumping stations and treatment plants. - Chemical Processing: Handles corrosive liquids safely. - Oil & Gas: Used in pipelines and refineries for hydrocarbon transport. - Food & Pharma: Compliant with sanitary standards due to smooth surfaces. Selection Considerations When choosing a stainless steel butterfly check valve, factors include pressure rating, temperature range, flow velocity, and media compatibility. Proper sizing ensures optimal performance and longevity. In summary, the stainless steel butterfly check valve is a robust, efficient solution for unidirectional flow control, combining durability with operational reliability across diverse industries.
