wafer butterfly valve: Performance, Maintenance, Inspection, and Installation

Introduction

The wafer butterfly valve is a highly efficient flow control device used in pipelines to regulate, isolate, and throttle fluids in various industrial, commercial, and municipal applications. Its compact wafer-style design allows it to be installed between two pipe flanges, offering space-saving installation, reliable sealing, and fast operation.

Constructed from durable materials such as stainless steel, carbon steel, or ductile iron, wafer butterfly valves provide long-lasting performance, corrosion resistance, and low maintenance requirements. This article offers a comprehensive guide covering product performance, maintenance best practices, inspection and testing, and step-by-step installation instructions, designed to help engineers, facility managers, and procurement professionals optimize valve performance and pipeline efficiency.

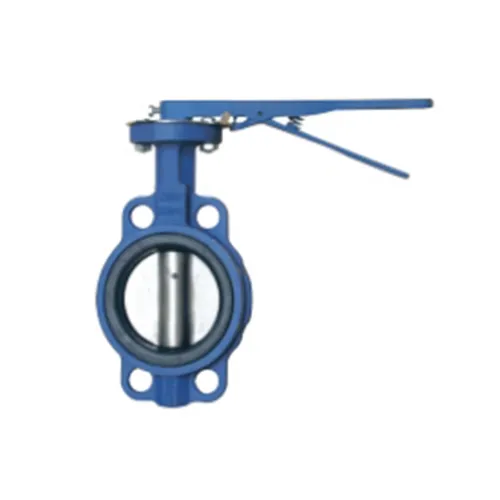

What is a Wafer Butterfly Valve?

A wafer butterfly valve is a rotary motion valve that uses a circular disc mounted on a rotating shaft to control fluid flow. When the disc is turned 90 degrees, it either opens fully for unrestricted flow or closes to stop the flow entirely.

Key Features:

• Compact wafer-style design for space-saving installation

• Suitable for mounting between pipe flanges

• Available in manual, electric, or pneumatic actuation

• Durable construction for high pressure and temperature resistance

• Corrosion-resistant materials suitable for various fluids

Product Performance

Wafer butterfly valves are designed to deliver efficient flow control, high reliability, and long-term durability.

1. Flow Control Efficiency

• The thin disc profile minimizes pressure drop, ensuring efficient flow throughout the pipeline.

• Suitable for throttling applications with smooth operation and minimal turbulence.

2. Tight Sealing

• Equipped with elastomeric, PTFE, or metal seats, the valve ensures a leak-free seal under normal operating conditions.

• Suitable for applications requiring tight shut-off, such as water treatment and chemical processing.

3. Temperature and Pressure Ratings

• Typical pressure ratings: PN10, PN16, or ANSI 150

• Temperature ranges depend on material and seat type:

• EPDM seat: -10°C to 120°C

• PTFE seat: -20°C to 180°C

• Metal seat: up to 400°C

4. Corrosion and Wear Resistance

• Materials like stainless steel and ductile iron resist corrosion and scaling, extending service life.

• Ideal for water, wastewater, chemicals, and HVAC fluids.

5. Ease of Operation

• Manual gear, lever, pneumatic, or electric actuation ensures smooth, reliable operation.

• Quick 90-degree rotation allows fast opening and closing.

Maintenance and Care

Proper maintenance ensures long-lasting valve performance and system efficiency.

1. Regular Inspection

• Check for signs of corrosion, wear, or leakage around the disc and seat

• Inspect actuator and stem for proper movement

2. Lubrication

• Periodically lubricate moving parts (stem, bearings) using manufacturer-recommended lubricants

• Avoid over-lubrication which may damage seals

3. Cleaning

• Clean valve internals to remove scale, debris, or sediment that may obstruct disc movement

• Ensure seat surfaces are free from foreign particles

4. Operational Checks

• Operate valve fully open and closed periodically to prevent sticking or jamming

• Verify actuator function for electrically or pneumatically operated valves

Inspection and Testing

To ensure optimal performance, wafer butterfly valves undergo standardized inspection and testing procedures:

1. Visual Inspection

• Check body and disc for surface defects, corrosion, or cracks

• Ensure stem alignment and proper disc rotation

2. Leak Testing

• Hydrostatic or pneumatic testing under rated pressure to verify tight sealing

• Detect potential leaks at the seat or flange connection

3. Operational Testing

• Open and close the valve multiple times to ensure smooth movement and correct travel angles

• Test actuators for responsive and accurate operation

4. Performance Verification

• Measure flow rate and pressure drop to confirm valve specifications

• Ensure the valve meets system design requirements

Installation Steps

Proper installation is crucial for long-term reliability and optimal performance.

1. Pre-Installation Preparation

• Verify valve size, pressure rating, and flow direction

• Inspect valve for shipping damage, debris, or foreign particles

• Ensure pipeline flanges are clean, aligned, and compatible

2. Installation Procedure

1. Place the wafer butterfly valve between the pipeline flanges

2. Insert gaskets between the flanges for leak-free sealing

3. Install flange bolts and tighten evenly in a crisscross pattern

4. Confirm valve orientation aligns with the designated flow direction

5. Verify actuator or manual lever has full 90-degree travel

3. Post-Installation Checks

• Slowly fill the pipeline and observe valve operation

• Check for leaks at the flange connection

• Adjust actuator or lever if necessary to achieve smooth operation

Tip: Avoid overtightening bolts to prevent flange distortion or valve body damage.

Advantages Over Other Valve Types

Insight: Wafer butterfly valves offer space-saving installation, fast operation, and energy-efficient flow control, making them ideal for modern pipeline systems.

Conclusion

The wafer butterfly valve is a versatile and reliable solution for regulating, isolating, and throttling fluids in industrial, commercial, and municipal piping systems. With durable construction, compact wafer-style design, and precise flow control, these valves provide long-term performance, low maintenance, and efficient operation.

By following installation guidelines, regular maintenance, and inspection procedures, users can maximize valve performance, ensure leak-free operation, and extend service life. Wafer butterfly valves are an ideal choice for engineers and facility managers seeking efficient, robust, and space-saving pipeline control solutions.
