Slim-Disc Butterfly Valve: High-Performance Compact Flow Control Solution

The Slim-disc Butterfly Valve is a compact, lightweight, and high-performance valve solution designed to optimize flow control in various industrial and commercial piping systems. Combining efficiency, durability, and cost-effectiveness, this valve has become a go-to choice for industries ranging from water treatment to chemical processing. In this article, we provide a detailed overview covering its structure, upgraded solutions, customer feedback, and key product highlights, ensuring a thorough understanding for potential buyers and engineers.

Table of Contents

1. Introduction

2. Structure and Design Features

3. Upgraded Solutions and Innovations

4. Product Highlights

5. Applications

6. Customer Reviews and Testimonials

7. Installation and Maintenance Guidelines

8. Technical Specifications Table

9. Conclusion

1. Introduction

The slim-disc butterfly valve is engineered to provide precise flow control while minimizing installation space. Its innovative design ensures low torque operation, energy efficiency, and reliable sealing across a wide range of applications. Compared to traditional butterfly valves, the slim-disc variant offers a thinner profile, making it ideal for installations where space constraints are critical.

2. Structure and Design Features

The structural design of the slim-disc butterfly valve emphasizes simplicity, durability, and efficiency. Key components include:

Main Components:

• Valve Body: Typically constructed from cast iron, ductile iron, stainless steel, or aluminum bronze, the body provides structural integrity and corrosion resistance.

• Slim Disc: The central disc is thinner than standard butterfly valves, allowing reduced torque and smoother operation while maintaining sealing performance.

• Seat: Made of EPDM, PTFE, or NBR, the seat ensures leak-free operation and can handle a variety of media including water, chemicals, and gases.

• Stem: Crafted from stainless steel, the stem connects the actuator or handle to the disc, ensuring precise movement.

• Actuator/Handle: Can be manual, electric, or pneumatic, depending on the application, offering flexible operation.

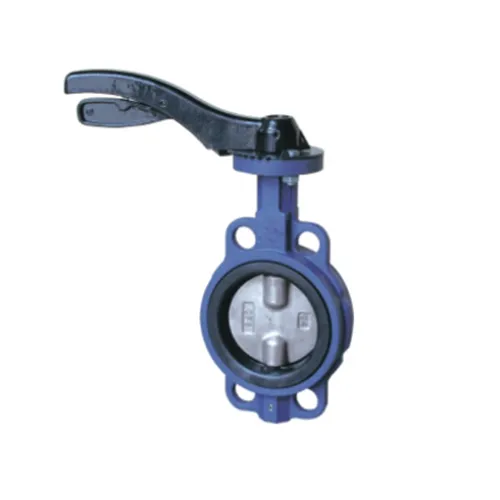

Figure 1: Slim-Disc Butterfly Valve Components

3. Upgraded Solutions and Innovations

Recent upgrades to slim-disc butterfly valves enhance performance and reliability:

1. Advanced Sealing Technology: Upgraded seats now provide longer service life and can tolerate higher pressure and temperature ranges.

2. Lightweight Materials: Adoption of composite or high-strength alloys reduces weight without compromising durability.

3. Enhanced Coating Options: Anti-corrosion coatings, such as epoxy or PTFE lining, extend lifespan in aggressive environments.

4. Smart Automation Integration: The valve can be equipped with IoT-enabled actuators, allowing remote monitoring and real-time flow adjustments.

5. Noise Reduction Design: Optimized disc profile reduces vibration and flow-induced noise in high-velocity pipelines.

4. Product Highlights

The slim-disc butterfly valve offers multiple advantages for industrial and commercial users:

• Compact Design: Minimal space requirement enables installation in tight piping networks.

• Low Torque Operation: Reduces energy consumption and actuator sizing.

• Durable Construction: Corrosion-resistant materials and robust design ensure longevity.

• Versatility: Compatible with a wide range of liquids, gases, and slurries.

• Easy Maintenance: Modular design allows fast replacement of seals and discs.

• Cost-Effective: Lower material usage and simplified installation reduce overall system cost.

Figure 2: Key Advantages of Slim-Disc Butterfly Valve

5. Applications

The slim-disc butterfly valve is widely used in various industries due to its reliability and compact size:

• Water Treatment: Flow regulation in municipal and industrial water systems.

• HVAC Systems: Controlling air and water flow in heating and cooling networks.

• Chemical Processing: Resistant to corrosive fluids, ideal for chemical pipelines.

• Food & Beverage: Sanitary materials and smooth surfaces prevent contamination.

• Power Plants: Suitable for cooling systems, steam lines, and auxiliary water networks.

• Oil & Gas: Handles various hydrocarbons and process fluids efficiently.

6. Customer Reviews and Testimonials

Customers worldwide have praised slim-disc butterfly valves for their durability, ease of installation, and cost efficiency.

• John M., HVAC Engineer: “The slim-disc butterfly valve significantly reduced installation space requirements in our retrofit project. Operation is smooth, and maintenance is minimal.”

• Samantha R., Water Treatment Plant Manager: “We upgraded our older valves to slim-disc models. The energy savings and leak-free performance are impressive.”

• Ahmed K., Chemical Plant Technician: “Corrosion resistance and the ability to handle aggressive chemicals make this valve ideal for our processes.”

7. Installation and Maintenance Guidelines

Proper installation and routine maintenance ensure long-term performance:

Installation Steps:

1. Inspect the valve for shipping damage.

2. Ensure pipe alignment and proper flange compatibility.

3. Install using gaskets and bolts according to torque specifications.

4. Confirm disc orientation for correct flow direction.

5. Connect manual or automated actuators as required.

Maintenance Tips:

• Regularly inspect for leaks and wear.

• Replace seats or seals every 2–3 years, depending on usage.

• Clean the disc surface to prevent buildup in slurry or chemical applications.

• Lubricate stem bearings if required by manufacturer specifications.

8. Technical Specifications Table

9. Conclusion

The Slim-disc Butterfly Valve is a versatile, efficient, and durable solution for modern piping systems. Its compact design, low torque requirements, and corrosion-resistant construction make it suitable for industries ranging from water treatment to chemical processing. With recent upgrades like smart actuator integration and advanced sealing technologies, this valve not only meets current operational demands but also future-proofs your systems for efficiency, reliability, and cost savings. Whether you are designing a new pipeline or upgrading existing infrastructure, the slim-disc butterfly valve offers a high-performance, professional-grade solution.
