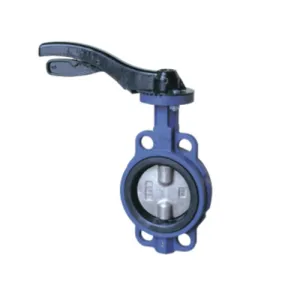

Slim Disc Butterfly Valve: Design, Features, and Applications A slim disc butterfly valve is a compact and lightweight flow control device designed for efficient regulation of fluids in piping systems. Its defining characteristic is the thin, streamlined disc that rotates 90 degrees to open or close the flow path. This design minimizes pressure drop and optimizes performance in applications where space and weight are critical considerations. Design and Construction The valve consists of a circular body, a centrally mounted disc (or "butterfly"), a stem, and an actuation mechanism (manual lever, gear, or actuator). The slim disc is thinner than conventional designs, reducing weight and allowing smoother operation. The disc rotates on a shaft supported by bearings or bushings, ensuring low friction and durability. Materials vary based on application requirements: - Body/Disc: Cast iron, ductile iron, stainless steel, or engineered plastics for corrosion resistance. - Seat: Resilient materials like EPDM, PTFE, or NBR for tight shut-off and chemical compatibility. Key Features 1. Space-Saving: The slim profile fits into tight installations, ideal for retrofit projects or systems with limited clearance. 2. Low Torque Operation: The lightweight disc reduces actuation force, enabling smaller actuators and energy savings. 3. Bubble-Tight Shut-off: High-performance seats ensure zero leakage in closed positions, meeting industry standards. 4. Versatility: Suitable for liquids, gases, and slurries across temperatures from -20°C to 150°C (-4°F to 302°F), depending on materials. 5. Low Maintenance: Simple design with fewer moving parts minimizes wear and extends service life. Applications - Water/Wastewater: Treatment plants, pumping stations, and distribution networks. - HVAC: Chilled/heating water systems for commercial buildings. - Industrial Processes: Chemical, food & beverage, and pharmaceutical industries. - Power Generation: Cooling water and fuel handling systems. Advantages Over Traditional Valves - Cost-Effective: Lower material and installation costs compared to gate or globe valves. - Quick Operation: Quarter-turn actuation allows rapid response in emergencies. - Adaptability: Compatible with pneumatic, electric, or hydraulic actuators for automation. Limitations - Not ideal for high-pressure throttling (potential cavitation risk). - Thinner discs may have reduced strength in high-pressure/vacuum scenarios. Conclusion The slim disc butterfly valve balances efficiency, compactness, and reliability, making it a preferred choice for modern fluid control systems. Its adaptability across industries underscores its value in optimizing flow management while reducing operational costs.
