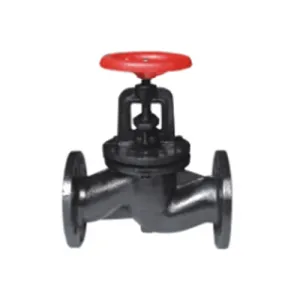

Globe Valve: A Comprehensive Overview A globe valve is a type of linear motion valve primarily used to regulate, throttle, or completely stop fluid flow in a pipeline. Its name derives from its spherical body shape, though modern designs may vary. Globe valves are widely utilized in industries such as oil and gas, power generation, water treatment, and chemical processing due to their precise flow control capabilities and reliable sealing performance. Design and Components The main components of a globe valve include: 1. Body: Typically made of cast or forged materials like carbon steel, stainless steel, or bronze, the body houses the internal components and provides structural integrity. 2. Bonnet: Attached to the body, the bonnet encloses the stem and packing, preventing leaks. It can be bolted, screwed, or welded to the body. 3. Stem: A threaded rod connected to the handwheel or actuator, transmitting motion to the disc for opening or closing the valve. 4. Disc (Plug): The movable element that seats against the valve seat to stop flow. Disc designs vary (e.g., ball, needle, or composition) to suit different applications. 5. Seat: A fixed ring inside the body that the disc contacts to create a tight seal when closed. 6. Packing: A sealing material (e.g., graphite or PTFE) around the stem to prevent leakage. Working Principle Globe valves operate by rotating a handwheel or using an actuator to move the stem linearly, lifting or lowering the disc. When the disc is raised, fluid flows through the space between the disc and seat, allowing precise flow adjustment. Complete closure occurs when the disc firmly contacts the seat, preventing leakage. Types of Globe Valves 1. Straight-Pattern: The most common type, with a vertical flow path and a horizontal seat, suitable for moderate pressure drops. 2. Angle-Pattern: Redirects flow by 90 degrees, reducing pressure loss and minimizing pipe bends. 3. Y-Pattern: Features a stem and seat at an angle, optimizing flow efficiency for high-pressure systems. Advantages - Excellent throttling and shut-off capabilities. - High durability and tight sealing. - Suitable for high-pressure and high-temperature applications. - Easy maintenance with repairable seats and discs. Disadvantages - Higher pressure drop compared to gate or ball valves. - Heavier and bulkier design. - Requires greater force to operate under high pressures. Applications Globe valves are ideal for systems requiring frequent flow regulation, such as: - Cooling water systems. - Fuel oil and steam lines. - Chemical dosing and feedwater control. Conclusion Globe valves are indispensable in industries demanding precise flow control and reliable shut-off. Their robust construction, versatility, and efficiency make them a preferred choice for critical applications. Selecting the right type depends on factors like pressure, temperature, and flow characteristics to ensure optimal performance.
