Square multileaf butterfly valve: Technical Guide for Industrial Applications

Introduction

The Square Multileaf Butterfly Valve is a specialized air control device designed for industrial ventilation, HVAC systems, dust removal equipment, and large-scale exhaust pipelines. Unlike standard round butterfly valves, the square multileaf type features multiple adjustable blades mounted within a square frame, allowing precise airflow regulation and balanced air distribution across rectangular or square ducts.

This article provides a comprehensive technical guide, covering the quick installation process, quality inspection reports, quality control practices, and tailored solutions. It is intended for engineers, project managers, and procurement professionals seeking reliable and efficient airflow management solutions.

Design and Functional Overview

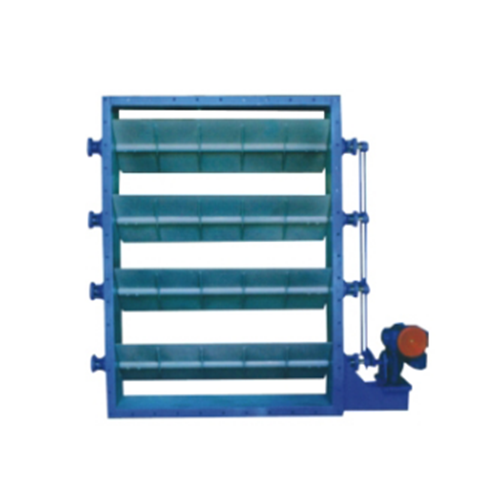

The square multileaf butterfly valve consists of a rigid square frame, multiple blades (leaves), a synchronizing linkage, and an actuator for manual, electric, or pneumatic control.

Key Features

• Square frame design: Perfect for integration into rectangular or square ducting systems.

• Multiple blades: Provide accurate airflow control and uniform distribution.

• Flexible actuation options: Manual lever, electric motor, or pneumatic actuator.

• Durable construction: Available in carbon steel, stainless steel, or aluminum alloy.

• Low resistance operation: Ensures energy efficiency and smooth ventilation.

Quick Installation Guide

A proper installation is essential for the valve’s efficiency and service life. The square multileaf butterfly valve is designed for fast, safe, and accurate installation in HVAC and industrial duct systems.

Step-by-Step Installation

1. Preparation

• Inspect the valve for transport damage before installation.

• Ensure duct ends are clean, flat, and free from dust or welding slag.

2. Positioning

• Place the valve in the correct orientation according to airflow direction.

• Align the square frame with duct flanges or connections.

3. Fixing

• Insert bolts evenly and tighten gradually in a cross pattern.

• Ensure the valve body is centered and blades rotate freely.

4. Sealing

• Apply gaskets or sealing rings between valve and duct to prevent leakage.

• Check for uniform compression across all flange connections.

5. Testing

• Operate the blades manually or via actuator to confirm smooth movement.

• Conduct an airflow or pressure test before commissioning.

Installation Checklist

Quality Inspection Report

Every square multileaf butterfly valve must undergo strict factory inspection before shipment. A quality inspection report is provided to ensure compliance with international standards.

Main Inspection Items

Example Documents Provided

• Material certificates (steel, stainless steel, or aluminum).

• Performance test report (leakage, airflow resistance, endurance).

• Coating and surface treatment report.

• Final acceptance checklist signed by QA engineers.

Quality Control Measures

Maintaining consistent product quality requires systematic quality control (QC) at every stage of manufacturing.

QC Procedures

1. Material Control

• Verify chemical composition and mechanical strength.

• Store raw materials in controlled environments.

2. Production Process Control

• CNC cutting and welding ensure dimensional accuracy.

• Precision assembly guarantees blade synchronization.

3. Surface Treatment Control

• Anti-corrosion coating applied and thickness inspected.

• Salt-spray or humidity tests performed for durability.

4. Final Product Control

• 100% functional test before packaging.

• Random sampling for endurance and leakage testing.

Quality Control Flowchart

Material Selection → Dimensional Inspection → Welding Quality Check → Surface Treatment Inspection → Assembly Verification → Functional Test → Final QA Approval

Common Issues and Solutions

Even with rigorous quality control, operational challenges may occur. The following solutions help users maintain performance.

Troubleshooting Table

Tailored Solutions for Industrial Applications

The square multileaf butterfly valve is adaptable to different project needs.

1. HVAC Applications

• Lightweight aluminum alloy valves for commercial ventilation.

• Electric actuators for automated building management systems.

2. Heavy Industry

• Stainless steel valves for chemical and metallurgical plants.

• Pneumatic actuators for fast response in high-temperature environments.

3. Environmental Engineering

• Large-size valves for dust collection systems.

• Multi-seal design for enhanced air filtration efficiency.

4. Energy Sector

• Corrosion-resistant coatings for power station exhaust ducts.

• Customized designs for boiler and turbine ventilation systems.

Advantages of Square Multileaf Butterfly Valve

1. Precise airflow control with multiple blades.

2. Low pressure drop for energy-efficient operation.

3. Strong structural stability for large ducts.

4. Versatile materials and actuator options.

5. Easy integration into square or rectangular ventilation systems.

6. Comprehensive quality assurance with full inspection reports.

Conclusion

The Square Multileaf Butterfly Valve is a reliable and efficient choice for industrial ventilation and HVAC systems requiring precise airflow management. Its multi-blade design, square frame compatibility, and customizable actuation options make it suitable for a wide range of industries, from commercial buildings to heavy manufacturing plants.

With proper installation, quality inspection, strict quality control, and effective troubleshooting, users can ensure long-term stable performance and reduced maintenance costs.

For global buyers, choosing a supplier that provides detailed inspection reports, international certification, and tailored solutions ensures not only product quality but also project success.
