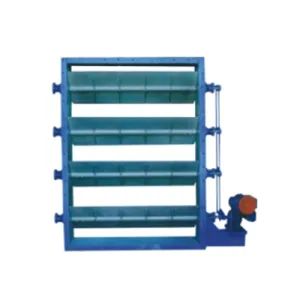

Industrial Square Air Control Butterfly Valve An industrial square air control butterfly valve is a specialized flow control device designed to regulate or isolate the movement of air or gas in various industrial applications. Unlike traditional round butterfly valves, this type features a square or rectangular body, making it suitable for specific ducting systems where space constraints or airflow dynamics require a non-circular design. Design and Construction The valve consists of a square or rectangular frame housing a disc (or vane) that rotates on a central shaft. When the disc is parallel to the airflow, the valve is fully open, allowing maximum flow. Rotating the disc 90 degrees positions it perpendicular to the flow, effectively shutting off the passage. The disc can also be adjusted to intermediate positions for precise flow control. Key components include: - Body: Typically constructed from durable materials like galvanized steel, stainless steel, or aluminum to withstand harsh industrial environments. - Disc: Made from lightweight yet robust materials to ensure smooth operation and minimal air resistance. - Seals: High-quality rubber or polymer gaskets provide an airtight closure when the valve is shut. - Actuator: Manual levers, pneumatic actuators, or electric motors can be used to control the disc position, enabling automated or remote operation. Applications Square air control butterfly valves are commonly used in: - HVAC Systems: For regulating airflow in large commercial or industrial ventilation ducts. - Dust Collection Systems: To control particulate-laden air streams in manufacturing plants. - Industrial Process Control: Managing air or gas flow in chemical, pharmaceutical, or food processing industries. - Energy and Power Plants: Directing combustion air or exhaust gases in boilers and turbines. Advantages - Space Efficiency: The square design fits seamlessly into rectangular ductwork, eliminating the need for adapters. - Low Pressure Drop: The streamlined disc minimizes turbulence, ensuring efficient airflow with minimal energy loss. - Quick Operation: The quarter-turn mechanism allows rapid opening or closing, enhancing system responsiveness. - Durability: Corrosion-resistant materials and robust construction ensure long service life even in demanding conditions. Installation and Maintenance Proper installation involves aligning the valve with the ductwork and ensuring smooth disc movement. Regular maintenance includes inspecting seals, lubricating moving parts, and checking for wear or debris buildup that could impede operation. In summary, the industrial square air control butterfly valve is a versatile and efficient solution for managing airflow in complex industrial systems, offering reliability, precision, and adaptability to various operational demands.
