Flanged Desulfurization Butterfly Valve – Complete Technical Guide

Introduction

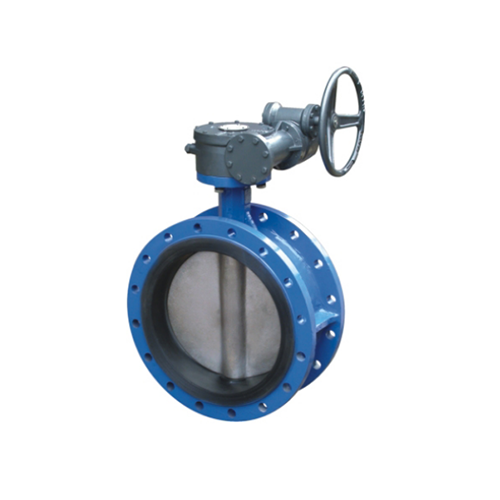

The Flanged Desulfurization Butterfly Valve is a specialized flow control solution engineered for flue gas desulfurization (FGD) systems and other demanding industrial processes. Designed with a flanged connection and anti-corrosion lining materials, this butterfly valve ensures stable performance when handling abrasive, acidic, or alkaline media such as limestone slurry, gypsum slurry, seawater, and desulfurization wastewater.

Thanks to its robust construction, reliable sealing, and easy maintenance, the flanged desulfurization butterfly valve is widely applied in power plants, chemical industries, metallurgy, and environmental engineering projects. This article covers operation guidelines, technical advantages, maintenance practices, and transport precautions for optimal valve usage.

Structural Design and Features

The valve is carefully engineered to resist the harsh environments of FGD applications, where standard valves would fail prematurely.

• Flanged Connection – Provides secure installation and excellent sealing integrity.

• Corrosion-Resistant Lining – Options include rubber, PTFE, UHMWPE, or special alloys depending on the medium.

• High-Strength Body – Made from ductile iron, carbon steel, or stainless steel with protective coatings.

• Reinforced Disc – Ensures reliable shut-off and smooth flow control under slurry and chemical attack.

• Wide Range of Actuators – Manual, electric, or pneumatic actuators for flexible automation.

Technical Advantages

The flanged desulfurization butterfly valve offers unique advantages compared to conventional valves:

1. Superior Corrosion Resistance

• Lined with rubber or PTFE to withstand aggressive chemicals, acid gases, and abrasive slurries.

2. Long Service Life

• Engineered with durable linings and optimized sealing, reducing downtime and replacement costs.

3. Low Flow Resistance

• Streamlined disc design minimizes pressure loss, improving system efficiency.

4. Reliable Flanged Design

• Ensures leak-free sealing under high pressure and continuous vibration conditions.

5. Versatile Application

• Suitable for wet flue gas desulfurization, seawater desulfurization, wastewater treatment, and chemical pipelines.

6. Easy Maintenance

• Replaceable seats, discs, and seals reduce maintenance complexity.

Operation Instructions

Proper operation ensures safe and efficient valve performance.

1. Pre-Operation Checklist

• Inspect valve body, flange, and lining for any visible damage.

• Confirm that the actuator (manual/electric/pneumatic) is calibrated.

• Ensure pipeline is clean and free of debris before installation.

2. Opening the Valve

• Operate slowly to prevent sudden pressure surges.

• For electric or pneumatic actuators, follow manufacturer’s startup procedures.

3. Closing the Valve

• Avoid forcing the handle or actuator beyond the stop point.

• Ensure valve disc fully aligns with seat to maintain sealing performance.

4. Safety Guidelines

• Always wear appropriate PPE (gloves, goggles, protective clothing) when handling corrosive media.

• Do not exceed specified pressure and temperature limits.

• Periodically monitor valve position indicators for correct alignment.

Maintenance and Care

Regular maintenance extends the lifespan of the valve and ensures stable operation.

Key Maintenance Tips

• Always use original manufacturer spare parts for replacement.

• Do not use sharp tools for cleaning the seat or lining.

• Drain the valve completely before conducting internal inspection.

• Store spare seals and gaskets in a dry, cool environment to prevent premature aging.

Transport Precautions

Transport and storage play an important role in preserving the valve’s integrity before installation.

1. Packaging

• Each valve is wrapped with moisture-proof and shock-resistant packaging.

• Flange faces are covered with protective caps to prevent dust and damage.

2. Handling

• Use lifting belts or forklifts; do not lift the valve by the actuator or handle.

• Avoid impact, rolling, or dragging to prevent deformation.

3. Storage

• Store in a dry, ventilated warehouse.

• Place the valve on wooden pallets or racks, not directly on the ground.

• Keep away from direct sunlight, chemical fumes, and high-humidity conditions.

4. Pre-Installation Check

• Inspect packaging upon arrival.

• Verify all bolts, nuts, and flange covers are intact before unpacking.

Application Fields

The Flanged Desulfurization Butterfly Valve is an indispensable solution in environmental and industrial applications:

• Power Plants – For flue gas desulfurization (wet FGD systems).

• Chemical Plants – Resistant to acidic and alkaline media in process lines.

• Metallurgical Industry – Used in slurry and wastewater pipelines.

• Marine & Offshore Engineering – Seawater desulfurization and corrosion control.

• Municipal Projects – Wastewater treatment plants and sewage systems.

Conclusion

The Flanged Desulfurization Butterfly Valve is a high-performance, corrosion-resistant solution built to withstand the most demanding conditions in flue gas desulfurization and environmental protection systems. Its technical advantages, including long service life, secure flanged design, and reliable sealing, make it an excellent choice for industries facing slurry erosion, chemical corrosion, and condensation challenges.

By following the operation guidelines, maintenance practices, and transport precautions, operators can maximize efficiency, reduce downtime, and extend the service life of their piping systems. For power generation, chemical, or environmental projects, this valve is a proven and cost-effective choice.
