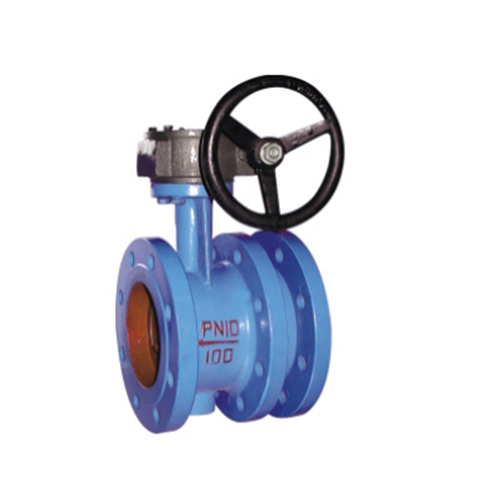

Flex Flanged Butterfly Valve – Complete Guide

Introduction

The Flex Flanged Butterfly Valve is a versatile industrial valve designed for reliable flow control, shut-off, and modulation in a wide range of pipeline systems. Combining a robust flanged connection with a flexible sealing design, this valve ensures leak-free operation, even under high pressure, high temperature, or corrosive conditions.

Widely used in water treatment, HVAC, chemical processing, power generation, oil & gas, and industrial piping systems, the Flex Flanged Butterfly Valve offers durable construction, low maintenance, and long-term operational efficiency. This guide provides detailed insights into maintenance methods, product highlights, performance testing, and inspection practices to maximize valve lifespan and performance.

Product Highlights

The Flex Flanged Butterfly Valve distinguishes itself with several key advantages:

1. Flexible Sealing System

• Provides excellent leak prevention under varying pressures and temperatures.

• Compatible with multiple sealing materials such as EPDM, NBR, PTFE, and Viton.

2. Robust Flanged Design

• Ensures a secure connection to pipeline flanges, minimizing the risk of leakage.

• Standardized flange sizes allow easy integration into existing systems.

3. Durable Construction

• Valve body options include cast iron, stainless steel, and carbon steel.

• Corrosion-resistant coatings and treatments improve service life in harsh environments.

4. Low Torque Operation

• Optimized disc and stem design allow smooth manual or automated operation.

5. Versatile Applications

• Suitable for liquid, gas, slurry, and chemical media.

Table 1: Flex Flanged Butterfly Valve Highlights

Maintenance Methods

Proper maintenance is essential to ensure long-term valve performance.

Routine Maintenance

• Visual Inspection: Monthly checks for corrosion, wear, and leakage around the flanges and body.

• Seal Inspection: Examine the flexible sealing material for cracks, hardening, or deformation every 6 months.

• Actuator Check: Ensure manual handles or automated actuators function correctly.

Cleaning and Lubrication

• Clean external surfaces to prevent dust or debris accumulation.

• Apply recommended lubricants to moving parts if necessary, especially in manual gear operations.

Replacement Guidelines

• Replace worn seals and gaskets promptly to prevent leakage.

• Always use manufacturer-specified parts to maintain performance standards.

Table 2: Maintenance Schedule

Performance Testing

Performance testing ensures operational reliability and safety. Key tests include:

1. Pressure Testing

• Test the valve at maximum operating pressure to confirm the seal’s integrity.

• Ensure there is no leakage from body, disc, or flange joints.

2. Operational Torque Testing

• Measure the torque required to open and close the valve fully.

• Torque should remain within manufacturer specifications to prevent stem or disc damage.

3. Temperature Resistance

• Test performance under expected operational temperatures.

• Check for any seal hardening, deformation, or leakage.

4. Flow Control Accuracy

• Verify that the valve can modulate flow smoothly without pressure surges or vibration.

Table 3: Performance Testing Checklist

Inspection and Monitoring

Routine inspection helps identify early signs of wear or failure:

• Stem and Disc: Ensure no corrosion or mechanical damage.

• Valve Body: Check for cracks, corrosion, or coating degradation.

• Flange Connections: Ensure bolts are tight and leak-free.

• Seals: Monitor flexible sealing elements for aging or wear.

Monitoring systems can include:

• Position indicators for automated valves.

• Pressure gauges upstream and downstream to detect abnormal pressure drops.

• Leak detection sensors for critical applications.

Best Practices for Extended Lifespan

1. Installation

• Ensure proper alignment of flanges and valve disc.

• Avoid over-tightening flange bolts to prevent distortion.

2. Operation

• Open and close slowly to minimize hydraulic shock.

• Operate within the specified temperature and pressure limits.

3. Environment Protection

• Keep valves clean and free of dust or corrosive deposits.

• For outdoor installations, consider protective coatings or covers.

4. Documentation

• Maintain a log of inspections, maintenance, and performance tests.

• Record any actuator adjustments or seal replacements.

Applications

The Flex Flanged Butterfly Valve is widely used in industries requiring durable, leak-proof, and flexible flow control:

• Water & Wastewater Treatment – Flow regulation in potable water and sewage systems.

• HVAC Systems – Control of heating and cooling fluids.

• Chemical & Petrochemical Plants – Resistant to corrosive fluids and slurries.

• Power Generation – Steam, cooling water, and condensate applications.

• Oil & Gas Industry – Pipeline shut-off for crude oil, gas, and refined products.

Conclusion

The Flex Flanged Butterfly Valve combines robust flanged construction with flexible sealing technology to deliver leak-free, long-lasting performance in demanding pipeline systems. Its technical advantages, ease of maintenance, and reliable operation make it an ideal choice for industrial, commercial, and environmental applications.

By following proper maintenance, inspection, and performance testing guidelines, operators can extend valve lifespan, reduce downtime, and improve system efficiency. Whether used in water treatment, chemical processing, or HVAC systems, this valve ensures safe, precise, and cost-effective flow control.
