Against condensation butterfly valve – Comprehensive Product Guide

Introduction

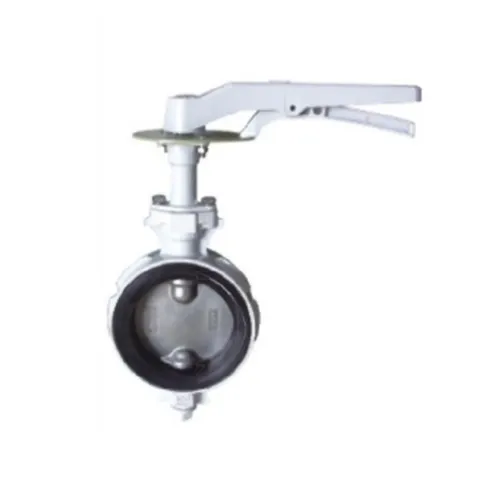

The Against Condensation Butterfly Valve is an advanced flow control device designed to combat one of the most common problems in industrial and commercial piping systems—condensation. Unlike standard valves, this specialized butterfly valve integrates anti-condensation technology to maintain reliable performance even in high-humidity or fluctuating temperature environments. It is widely used in HVAC systems, chemical industries, power plants, and water treatment facilities, where condensation can cause corrosion, leakage, and premature system failure.

This article provides a detailed overview of the valve, including parts list, certification standards, frequently asked questions (FAQs), and usage recommendations. The goal is to help engineers, procurement teams, and project managers select and maintain the most efficient solution for their systems.

Structural Features and Design Advantages

The Against Condensation Butterfly Valve stands out due to its unique design enhancements aimed at preventing moisture accumulation.

• Condensation-Resistant Coating – The valve disc and body are coated with specialized anti-condensation materials to ensure durability.

• Reliable Sealing System – High-performance elastomer seals maintain tight shut-off, even under temperature swings.

• Corrosion-Resistant Materials – Body made of stainless steel, carbon steel, or ductile iron with protective layers.

• Compact Wafer or Lug Style – Easy to install between flanges, reducing installation space.

• Wide Range of Diameters – Available in DN50–DN1200 to meet industrial and commercial system needs.

Component List (Bill of Materials)

A breakdown of the main components of the Against Condensation Butterfly Valve is provided below:

This well-engineered component design ensures long-lasting, efficient, and safe operation in harsh industrial environments.

Certification Standards

To ensure safety, reliability, and compliance, the Against Condensation Butterfly Valve meets or exceeds the following international standards:

• ISO 9001: Quality Management Certification – Ensures strict quality control in manufacturing.

• API 609: Butterfly Valve Design Standard – Compliance with industry-recognized design and performance criteria.

• EN 593: European Standard for Industrial Valves – Guarantees structural integrity and operational performance.

• CE Certification – Conforms to European Union safety regulations.

• WRAS or NSF Approval (Optional) – For potable water systems requiring safe materials.

• Fire-Safe Certifications (Optional) – For installations in critical safety applications.

These certifications give buyers confidence in durability, safety, and regulatory compliance across global markets.

Product Applications

The anti-condensation design makes this valve a versatile solution for industries dealing with humid, low-temperature, or high-pressure systems:

• HVAC Systems – Prevents condensation during cooling and heating cycles.

• Water Treatment Plants – Maintains system reliability in high-moisture environments.

• Chemical Industry – Protects against corrosion when handling aggressive media.

• Power Stations – Reduces maintenance costs by preventing leakage in cooling systems.

• Food & Beverage Industry – Ensures hygienic flow control where condensation can impact quality.

Frequently Asked Questions (FAQs)

Q1: What makes the Against Condensation Butterfly Valve different from standard butterfly valves?
A1: It features special anti-condensation materials, sealing enhancements, and corrosion-resistant coatings, which prevent performance loss due to moisture accumulation.

Q2: Can it be installed in both horizontal and vertical pipelines?
A2: Yes, the design supports multi-directional installation without compromising performance.

Q3: What type of actuators can be used with this valve?
A3: The valve supports manual worm gear, pneumatic, and electric actuators, depending on project needs.

Q4: How often should the valve be maintained?
A4: Regular inspections every 6–12 months are recommended, focusing on seals, gaskets, and actuator performance.

Q5: Is it suitable for drinking water applications?
A5: Yes, if purchased with WRAS/NSF-certified materials, it can safely be used for potable water systems.

Maintenance Tips and Best Practices

To ensure long service life, users should follow these maintenance guidelines:

• Regular Inspection – Check seals and seats for signs of wear or leakage.

• Lubrication – Apply lubricant to the stem and worm gear (if manual actuator is used).

• Cleaning – Keep external surfaces free of dust, dirt, and moisture buildup.

• Seal Replacement – Replace seats and gaskets if they show cracks or hardening due to condensation cycles.

• Torque Check – Ensure actuator torque matches manufacturer specifications.

Usage Recommendations

1. Proper Storage Before Installation

• Store in a dry, well-ventilated area to avoid premature condensation damage.

• Keep valve ends sealed with protective covers.

2. Installation Guidelines

• Align the valve centrally between flanges to prevent leakage.

• Avoid excessive tightening of flange bolts, which may deform the seat.

3. Operational Recommendations

• Open and close the valve gradually to prevent pressure surges.

• Do not exceed the recommended operating temperature and pressure.

4. Industry-Specific Advice

• In HVAC systems, select EPDM seats for better temperature resistance.

• In chemical plants, opt for PTFE seats for superior corrosion resistance.

Conclusion

The Against Condensation Butterfly Valve is more than a simple shut-off device—it is a reliable, condensation-resistant solution for demanding industrial and commercial applications. Its robust design, certified quality, and wide adaptability make it a top choice for engineers and procurement specialists seeking durability and cost efficiency.

By following certification standards, usage recommendations, and maintenance tips, operators can ensure long-lasting performance and reduced downtime. Whether in HVAC, power generation, chemical processing, or water treatment, this valve guarantees safe, efficient, and leak-free operation under the toughest environmental conditions.
