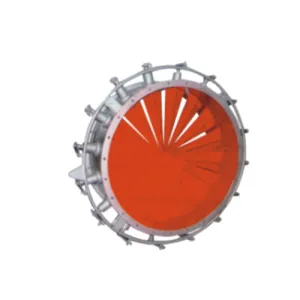

Round Multi-Leaf Butterfly Valve: Description and Applications A round multi-leaf butterfly valve is a specialized flow control device designed to regulate or isolate the movement of fluids in large-diameter piping systems. Unlike traditional single-disc butterfly valves, this type features multiple segmented leaves (or vanes) arranged radially around a central shaft, which operate in unison to modulate flow. The design offers enhanced performance in applications requiring precise flow control, reduced pressure drop, and improved sealing capabilities. Design and Construction The valve consists of a circular body, typically made from durable materials like ductile iron, stainless steel, or carbon steel, ensuring resistance to corrosion and high-pressure conditions. The multi-leaf mechanism comprises two or more independently adjustable vanes that rotate synchronously when the actuator is engaged. Each leaf is mounted on a shared or individual shaft, allowing them to pivot in parallel. The sealing system often utilizes resilient materials such as EPDM, PTFE, or Nitrile rubber, which provide tight shut-off and compatibility with various media, including water, gases, and mild chemicals. Advanced designs may incorporate metal-to-metal seals for high-temperature or abrasive applications. Operational Mechanism The valve operates via a quarter-turn (90-degree) motion, similar to standard butterfly valves. When open, the leaves align parallel to the flow direction, minimizing turbulence and pressure loss. In the closed position, the vanes rotate perpendicular to the flow, forming a tight seal against the valve seat. The multi-leaf configuration ensures uniform distribution of flow forces, reducing wear and vibration compared to single-disc designs. Actuation options include manual hand levers, gear operators, or automated systems (electric, pneumatic, or hydraulic actuators) for remote control. The modular design allows easy integration with control systems for process automation. Advantages 1. Low Pressure Drop: The segmented leaves create a streamlined flow path, reducing energy consumption. 2. Precise Flow Control: Gradual adjustment of vane angles enables fine-tuned throttling. 3. Compact and Lightweight: Ideal for space-constrained installations, especially in large pipelines. 4. Bidirectional Sealing: Effective shut-off in both flow directions. 5. Minimal Maintenance: Robust construction and fewer moving parts enhance longevity. Applications Round multi-leaf butterfly valves are widely used in: - Water and Wastewater Treatment: Pump stations, distribution networks, and sludge handling. - HVAC Systems: Air and water flow regulation in heating/cooling systems. - Power Plants: Cooling water circuits and fuel gas pipelines. - Industrial Processes: Chemical processing, food and beverage, and pulp/paper industries. Conclusion The round multi-leaf butterfly valve combines efficiency, durability, and versatility, making it a preferred choice for large-scale flow control. Its innovative multi-vane design addresses limitations of conventional valves, offering superior performance in demanding environments.
