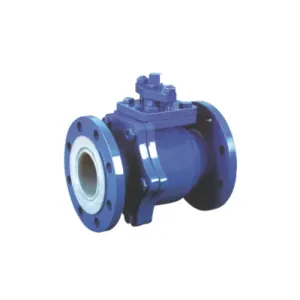

PTFE Ball Valve: A Comprehensive Overview A PTFE ball valve is a type of industrial valve designed for controlling the flow of fluids in piping systems. It utilizes a spherical closure unit (the ball) with a bore through its center, which rotates to allow or block the flow. The key feature of this valve is its use of polytetrafluoroethylene (PTFE), a high-performance fluoropolymer known for its exceptional chemical resistance, thermal stability, and low friction properties. Design and Construction The PTFE ball valve consists of several critical components: 1. Ball: Typically made of stainless steel or other metals, coated or lined with PTFE to enhance corrosion resistance. 2. Seats: PTFE seats ensure a tight seal and reduce wear, even in abrasive or corrosive environments. 3. Body: Constructed from materials like carbon steel, stainless steel, or PVC, often lined with PTFE for full chemical compatibility. 4. Stem: Connects the actuator to the ball, enabling rotation. PTFE seals around the stem prevent leakage. 5. Actuator: Manual levers, gears, or automated actuators (pneumatic/electric) control the valve operation. Key Advantages - Chemical Resistance: PTFE is inert to most chemicals, making the valve ideal for aggressive media like acids, alkalis, and solvents. - Temperature Tolerance: Operates effectively from -50°C to 200°C (-58°F to 392°F), suitable for both cryogenic and high-temperature applications. - Low Friction: PTFE’s non-stick surface minimizes friction, ensuring smooth operation and reduced torque requirements. - Zero Leakage: The soft PTFE seats provide bubble-tight sealing, critical for hazardous or high-purity systems. - Long Service Life: Resistant to corrosion, scaling, and degradation, reducing maintenance needs. Applications PTFE ball valves are widely used in industries requiring stringent fluid control: - Chemical Processing: Handling corrosive liquids, slurries, and aggressive chemicals. - Pharmaceuticals: Ensuring contamination-free flow in sterile processes. - Water Treatment: Resisting chlorine, ozone, and other disinfectants. - Oil & Gas: Managing corrosive hydrocarbons and offshore applications. - Food & Beverage: Complying with hygiene standards due to PTFE’s non-toxicity. Types of PTFE Ball Valves 1. Floating Ball Design: The ball is held in place by compressive seat seals, suitable for low-pressure systems. 2. Trunnion-Mounted Ball: Features mechanical anchoring for high-pressure or large-diameter pipelines. 3. Three-Way Valves: Allow flow diversion between multiple ports. 4. Full Bore vs. Reduced Bore: Full bore valves minimize pressure drop, while reduced bore valves are compact and cost-effective. Maintenance Considerations While PTFE ball valves are durable, periodic inspections are recommended: - Check for seat wear or deformation. - Ensure stem seals remain intact to prevent leakage. - Lubricate moving parts if specified (though PTFE often eliminates the need). Conclusion The PTFE ball valve is a versatile, reliable solution for demanding fluid control applications. Its combination of PTFE’s inert properties and robust mechanical design ensures optimal performance in corrosive, high-purity, or extreme-temperature environments. Whether in chemical plants, water systems, or pharmaceutical facilities, PTFE ball valves deliver longevity, safety, and efficiency.
