Wafer Disc Check Valve: Complete Guide to Advantages, Operation, Troubleshooting, and Transport Requirements

Introduction

The wafer disc check valve is a widely used non-return valve designed to prevent reverse flow in pipelines. Its compact structure, ease of installation, and reliable sealing performance make it suitable for water supply systems, HVAC, petrochemical pipelines, and various industrial applications. In this article, we provide a comprehensive overview of wafer disc check valves, covering their product advantages, step-by-step operation guidelines, common troubleshooting methods, and transportation requirements. This professional guide is tailored for engineers, procurement specialists, and project managers seeking reliable information before purchase and application.

What Is a Wafer Disc Check Valve?

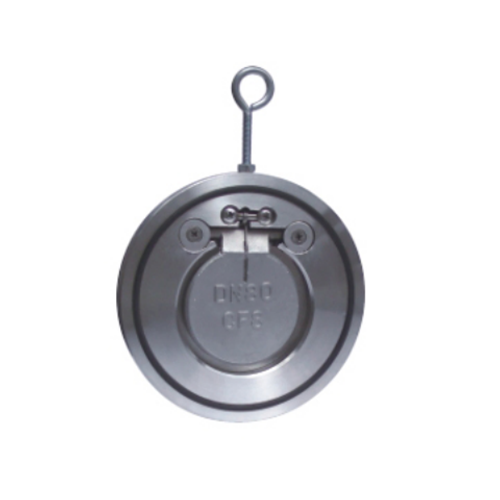

A wafer disc check valve is a one-way valve featuring a thin, lightweight body that fits between two flanges. The valve disc opens when fluid flows in the forward direction and automatically closes when flow reverses, preventing backflow and protecting pumps, compressors, and piping systems.

Key Features:

• Slim body design – minimizes space requirements.

• Spring-assisted closure – reduces water hammer.

• Versatile installation – can be mounted in both horizontal and vertical pipelines.

• Material options – stainless steel, carbon steel, cast iron, or exotic alloys for specific media.

Advantages of Wafer Disc Check Valve

1. Compact and Space-Saving

Unlike conventional Swing Check Valves, wafer disc check valves are slim and lightweight, which makes them ideal for systems with limited installation space.

2. Reliable Backflow Prevention

The spring-loaded disc ensures fast closure, reducing the risk of water hammer and extending system life.

3. Wide Range of Applications

They are suitable for clean water, seawater, oil, gas, steam, and mild chemical media.

4. Easy Maintenance

Fewer moving parts mean lower maintenance costs and less downtime.

5. Cost-Effective Solution

Their simple structure and long service life make them an economical choice for industrial projects.

Operation Instructions

Installation Guidelines

• Ensure the flow direction arrow on the valve body matches the pipeline flow direction.

• Install the valve between standard flanges according to the specified pressure rating.

• For vertical installations, confirm that the flow direction is upward to ensure proper disc movement.

• Use appropriate gaskets to prevent leakage at the connection points.

Operating Conditions

• Temperature range: typically -20°C to +200°C (depending on material).

• Pressure ratings: PN10–PN40, ANSI Class 150–300.

• Suitable for liquid and gas media with minimal solid particles.

Troubleshooting Guide

Even though wafer disc check valves are highly reliable, certain problems may occur due to installation errors, media conditions, or wear and tear. Below is a troubleshooting chart for quick reference:

Transport and Storage Requirements

Proper handling during transportation and storage is essential to maintain product integrity.

• Packaging: Each valve should be individually packed in protective materials to prevent scratches and mechanical damage.

• Moisture protection: For carbon steel or cast iron valves, anti-rust oil and sealed packaging are required.

• Stacking: Avoid stacking heavy loads directly on the valve to prevent deformation.

• Storage environment: Keep in a dry, ventilated warehouse; avoid exposure to corrosive chemicals.

• Inspection before installation: Check valve body, disc, and sealing surfaces for damage or foreign particles.

Applications Across Industries

• Water treatment plants – backflow prevention in pumping stations.

• Oil and gas pipelines – ensuring safety in high-pressure environments.

• HVAC systems – preventing reverse circulation in chilled water or hot water loops.

• Marine industry – corrosion-resistant valves for seawater applications.

• Chemical processing – handling non-corrosive and mildly corrosive fluids.

Comparison: Wafer Disc Check Valve vs. Swing Check Valve

Maintenance Tips

• Conduct periodic inspections for wear, especially in high-pressure or abrasive media.

• Keep pipeline clean to avoid particles that may obstruct the disc.

• Replace gaskets during reinstallation to ensure tight sealing.

• Store spare parts such as discs and springs for quick replacement during maintenance.

Conclusion

The wafer disc check valve is a practical, reliable, and cost-efficient solution for preventing backflow in industrial and commercial systems. Its slim design, quick closure mechanism, and adaptability to various installation orientations make it one of the most popular choices among engineers and project managers. By following the correct installation, operation, troubleshooting, and transport guidelines, users can maximize the service life and efficiency of wafer disc check valves.

For industries seeking high-performance flow control solutions, wafer disc check valves deliver both technical reliability and economic value, making them a smart choice for modern pipeline systems.
