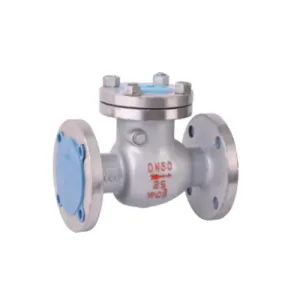

Swing Check Valve: Overview and Applications A swing check valve is a type of check valve designed to allow fluid flow in one direction while preventing backflow in piping systems. It operates automatically, relying on the fluid’s pressure and gravity to open or close the valve. The valve consists of a disc or flap that swings on a hinge or pivot, allowing forward flow when the pressure is sufficient and closing when the flow reverses. Design and Working Principle The primary components of a swing check valve include: - Body: Typically made of cast iron, stainless steel, bronze, or other durable materials, depending on the application. - Disc (or Flap): A movable component that seals against the seat to block reverse flow. - Hinge Pin: Allows the disc to swing freely. - Seat: The sealing surface where the disc rests when closed. When fluid flows in the desired direction, the pressure pushes the disc open, permitting passage. When the flow stops or reverses, gravity and backpressure force the disc back onto the seat, creating a tight seal and preventing backflow. Advantages 1. Low Pressure Drop: The disc fully opens in high-flow conditions, minimizing resistance. 2. Simple Operation: No external actuation is needed; it functions based on flow dynamics. 3. Versatility: Suitable for horizontal or vertical (upward flow) installations. 4. Durability: Robust construction ensures long service life in various environments. Applications Swing check valves are widely used in: - Water and Wastewater Systems: Preventing backflow in pipelines and treatment plants. - Oil and Gas Industry: Handling crude oil, refined products, and natural gas. - HVAC Systems: Ensuring one-directional flow in heating and cooling circuits. - Chemical Processing: Compatible with corrosive fluids when constructed from resistant materials. Limitations - Slamming: Rapid closure may cause water hammer, requiring dampers or slow-closing designs. - Orientation Sensitivity: Must be installed correctly to ensure proper disc movement. Conclusion Swing check valves are essential for maintaining unidirectional flow in piping systems. Their reliability, ease of maintenance, and adaptability make them a preferred choice across industries. Proper selection based on fluid type, pressure, and installation orientation ensures optimal performance and longevity.
