TECHNIAL STANDARD
1.Nominal Pressure:PN≤1.6MPa
2.Working Medium:Water,oil,non-oorosive and non-combustible gas
3.Working Temperature:-20℃≤T≤150℃
4.Pipe thread to ISO 228
DN | SIZE | L | B |
15 | 1/2 | 47.5 | 33.7 |
20 | 3/4 | 51.5 | 40.2 |
25 | 1 | 57 | 45.3 |
32 | 11/4 | 64.2 | 57.5 |
40 | 11/2 | 68 | 66.2 |
50 | 2 | 78.5 | 78 |
65 | 212 | 97 | 98.3 |
80 | 3 | 103 | 110 |
100 | 4 | 113.5 | 141.5 |

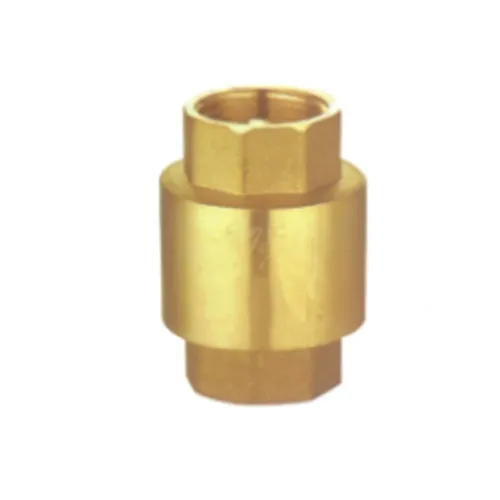

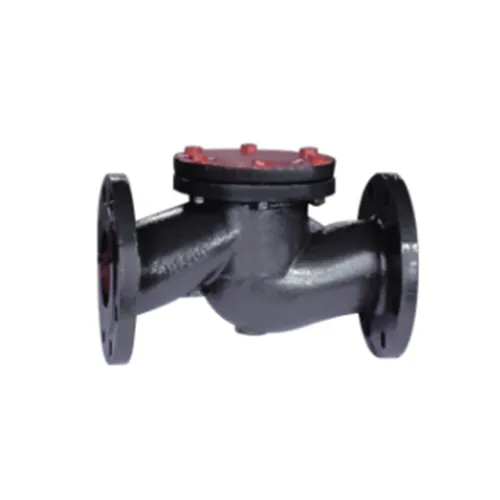

vertical lift check valve: Safety Instructions, Common Issues, Safe Operating Procedures, and Packaging Information
The vertical Lift Check Valve is a critical component in pipeline systems designed to allow flow in one direction while preventing backflow. Its vertical disc movement ensures efficient fluid control, minimal pressure drop, and reliable sealing under various industrial, municipal, and commercial applications.
This article provides an in-depth guide covering safety instructions, common issues, operating procedures, and packaging information, offering professionals a comprehensive understanding for proper installation, maintenance, and use of vertical lift check valves.
A vertical lift check valve operates with a disc that moves vertically inside the valve body to allow flow in the forward direction and automatically closes to prevent backflow. The valve design is ideal for vertical pipelines, especially in pumping systems and high-pressure applications.
Key Features:
Vertical disc lift for unidirectional flow control
Tight sealing with minimal leakage
High durability and corrosion resistance
Suitable for liquids, steam, and non-corrosive fluids
Compatible with industrial, water supply, and HVAC systems
Vertical lift check valves are widely used across multiple industries:
Chemical and petrochemical processing pipelines
Steam and condensate lines
Pumping stations and industrial water systems
Drinking water pipelines
Wastewater treatment systems
Fire protection systems
Chilled water and hot water supply systems
Cooling towers and boiler feed lines
Thermal power plant condensate lines
Pump discharge and high-pressure water lines
Benefit: The vertical lift design ensures reliable flow control, prevents backflow, and protects pumps and equipment from damage.
Safe installation, operation, and maintenance are essential to prevent accidents and ensure optimal performance.
Always isolate the pipeline before installation or maintenance.
Wear appropriate personal protective equipment (PPE) such as gloves, goggles, and protective clothing.
Do not operate the valve beyond its rated pressure or temperature limits.
Ensure the valve is properly aligned with the pipeline to prevent mechanical stress.
Avoid dropping or striking the valve body; it can damage the internal components.
Confirm that the valve orientation matches the flow direction marked on the body.
Use suitable lifting equipment for large valves to prevent injury and damage.
Depressurize the system before inspecting or disassembling the valve.
Replace worn or damaged components using only manufacturer-approved parts.
Keep the surrounding area clean and free from debris that may interfere with valve operation.
Even well-designed vertical lift check valves may encounter operational issues. Understanding these issues helps in preventive maintenance and ensures long-term reliability.
| Problem | Possible Cause | Solution |
|---|---|---|
| Valve fails to close completely | Debris lodged between disc and seat | Clean internal components; check for damage |
| Water hammer or noise | Rapid flow changes or high velocity | Install surge suppressors; reduce flow velocity |
| Leakage at the seat | Worn or damaged sealing surface | Replace seat or disc sealing components |
| Stiff or hard-to-operate disc | Corrosion, debris, or improper lubrication | Clean and lubricate; replace damaged components |
| Excessive vibration | Misalignment or incorrect installation | Align valve properly; secure pipe supports |
Tip: Regular inspections and scheduled maintenance prevent many of these issues.
Proper operation ensures system safety, valve longevity, and efficiency.
Verify the valve is correctly installed with the flow direction aligned.
Open upstream isolation valves slowly to avoid water hammer.
Observe the valve disc movement to ensure smooth opening.
Check for leaks at the seat and body connections.
Maintain flow within the rated pressure and temperature range.
Avoid rapid changes in flow that may damage the disc or cause water hammer.
Periodically inspect the valve for signs of wear, corrosion, or misalignment.
Close upstream isolation valves slowly.
Depressurize the system before maintenance or inspection.
Lock-out and tag-out the valve for safety if maintenance is required.
Proper packaging ensures the valve arrives intact and ready for installation.
| Packaging Type | Description |
|---|---|
| Individual Boxes | Foam or bubble wrap to prevent scratches and protect small valves |
| Wooden Crates | Suitable for large or heavy valves; protects against impact and moisture |
| Palletized Packing | Multiple valves secured with straps and shrink wrap for bulk shipments |
| Protective Coating | Anti-corrosion oil or plastic caps on ports for long-term storage |
| Labeling | Valve type, size, model number, pressure rating, and batch information |
Benefit: Correct packaging minimizes transportation damage, ensuring valves are ready for immediate use.
Vertical lift check valves are manufactured from various materials to suit different applications:
| Material | Advantages | Applications |
|---|---|---|
| Cast Iron | Cost-effective, durable | Water supply, HVAC pipelines |
| Stainless Steel | Corrosion-resistant, high strength | Chemical, steam, and industrial lines |
| Bronze | Excellent corrosion resistance, lightweight | Potable water and marine applications |
| Alloy Steel | High-pressure and temperature handling | Power plants, oil & gas pipelines |
| Feature | Vertical Lift Check Valve | Swing Check Valve |
|---|---|---|
| Flow Control | Precise and tight sealing | Less precise; may allow slight backflow |
| Noise & Vibration | Reduced water hammer if properly installed | Higher risk of water hammer |
| Maintenance | Easier to inspect and clean | More difficult due to internal design |
| Pressure Drop | Minimal when fully open | Higher pressure drop |
| Application | High-pressure vertical pipelines | Low-to-moderate pressure systems |
Insight: Vertical lift check valves are ideal for high-pressure, vertical applications where system efficiency and protection of pumps are critical.
The vertical lift check valve is an essential component for ensuring unidirectional flow, protecting equipment, and maintaining system efficiency in industrial, municipal, and commercial pipelines. With proper adherence to safety instructions, operational procedures, and maintenance schedules, these valves provide long-lasting, reliable performance.
Understanding common issues and troubleshooting methods allows operators to minimize downtime and prevent damage to pipelines and pumps. Additionally, proper packaging and material selection ensure the valves are delivered safely and function reliably in critical systems.
With its high durability, corrosion resistance, and precise operation, the vertical lift check valve is a top choice for engineers and procurement professionals seeking efficiency, safety, and reliability in demanding applications.
