Self-Type Thermostatic Valve: Complete Technical Guide

Introduction

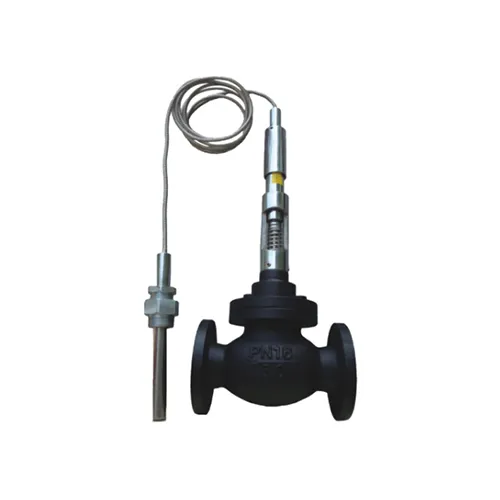

The Self-Type Thermostatic Valve is a precision-engineered valve designed for automatic temperature regulation in heating and cooling systems. Equipped with a built-in thermostatic sensor, this valve continuously adjusts water flow to maintain a pre-set temperature, enhancing comfort, energy efficiency, and system stability.

This valve is widely used in residential, commercial, and industrial HVAC applications, providing reliable operation, minimal maintenance, and compatibility with modern smart building systems. This guide provides detailed insights into common issues, certification standards, user guidance, and technical specifications to help operators optimize system performance.

Product Overview

Key Components

• Valve Body: Durable corrosion-resistant metal or alloy ensuring long service life.

• Thermostatic Sensor: Responds to temperature changes and automatically modulates flow.

• Control Cartridge: Transfers sensor movement to regulate water flow accurately.

• Sealing System: Leak-tight seals for reliable operation under varying pressures.

• Connection Fittings: Threaded or flanged connections compatible with standard piping systems.

Key Features

• Automatic temperature regulation based on thermostatic sensing.

• Energy-efficient operation through precise modulation of water flow.

• Minimal maintenance with robust construction and high-quality materials.

• Suitable for radiators, fan coil units, and heating/cooling circuits.

• Integration compatibility with smart building automation systems.

User Guide

Installation Instructions

1. Pre-Installation Checks: Confirm valve size, connection type, and system compatibility.

2. Pipe Preparation: Clean pipelines to remove debris and scale that may affect valve operation.

3. Valve Positioning: Install in the correct flow direction as indicated on the valve body.

4. Connection: Use thread sealant or gaskets as recommended to ensure leak-free installation.

5. Initial Operation: Open and close the valve fully to verify smooth movement and actuator response.

Operation Guidelines

Safety Precautions

• Do not exceed maximum pressure or temperature ratings.

• Avoid using sharp tools or excessive force on the valve body or sensor.

• Ensure electrical connections for smart integration comply with local regulations.

• Perform routine inspections to maintain leak-free operation.

Common Issues and Troubleshooting

Even high-quality thermostatic valves may encounter operational issues. Proper troubleshooting ensures system efficiency and long-term reliability.

Maintenance Guidelines

• Monthly: Inspect valve body and sensor for signs of corrosion or physical damage.

• Quarterly: Check sealing system and replace any worn gaskets.

• Annually: Perform functional testing to ensure accurate flow regulation.

• Preventive Measures: Keep system clean, avoid excessive flow pressure, and monitor temperature response for anomalies.

Certification Standards

The Self-Type Thermostatic Valve complies with multiple international standards, ensuring quality, safety, and energy efficiency.

Benefits of Certification

• Guarantees safe and reliable operation in multiple environments.

• Supports compliance with international energy efficiency regulations.

• Provides confidence for industrial, commercial, and residential installations.

Technical Specifications

Applications

The Self-Type Thermostatic Valve is versatile and widely applicable across heating and cooling systems.

Residential Applications

• Individual room temperature control via radiators.

• Energy-efficient heating by automatically reducing flow to overheated rooms.

Commercial Buildings

• Zone-based temperature regulation in offices, hotels, and shopping centers.

• Integration with BMS for centralized monitoring and control.

Industrial Applications

• Precise temperature management in process water and fluid systems.

• Minimizes energy usage while maintaining process stability.

Benefits Across Applications

• Energy Savings: Automatic flow regulation reduces energy consumption.

• Comfort Enhancement: Maintains stable room temperatures.

• Reduced Maintenance: Long-life materials and self-regulating operation minimize intervention.

• Flexible Integration: Compatible with traditional and smart building systems.

Advantages

1. Automatic Temperature Regulation: Maintains consistent comfort without manual intervention.

2. Energy Efficiency: Reduces heating and cooling costs through intelligent flow control.

3. Reliable Operation: Robust construction and quality-certified components ensure long service life.

4. Easy Integration: Compatible with existing piping, radiators, and building management systems.

5. Minimal Maintenance: Self-regulating design minimizes wear and intervention requirements.

6. Versatile Application: Suitable for residential, commercial, and industrial environments.

Conclusion

The Self-Type Thermostatic Valve is a reliable and energy-efficient solution for modern heating and cooling systems, offering automatic flow regulation, reduced operational costs, and enhanced comfort. By adhering to proper installation, usage, and maintenance practices, operators can ensure long-term performance, system stability, and compliance with international standards.

With robust construction, intelligent temperature control, and versatile application capabilities, the Self-Type Thermostatic Valve is an ideal choice for smart and energy-conscious building projects worldwide.
