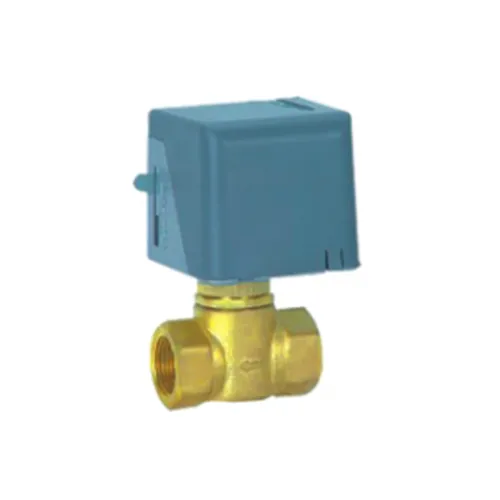

ZVP series switch type electric valve for control of HVAC pipe to open or close,to achieve the purpose of controlling the indoortemperature.Control valve driven by the one-way hysteresis synchronous motor,spring reset function.The valve is normally closed state,when the work is provided by the tem- perature controller,an open valve signal,the electric valve connected to AC power and action,the valve opening,chilled water or hot water into the fan coil, the rooms offer air-conditioning or heating;when the temperature reachesthe themostat setting requirements,the themostat so the electric valve off,the valve reset the function of starting,electric valve closed,thus cutting off the flow into the fan coil.Through the electric valve is opened and closed,the room temperature is always maintained within the range set the thermostat at.
ZVP061 electric valve and actuator using color screw sleeve connection mode;ZVP062 type optional control with auxiliary switch applied to other equipment,unrestricted flow of medium.And can choose different forms,over voltage applied to meet different requirements of control.ZVP063 electric three-way valve is applicable to water fromAB to flow to the A or the B,or the steering flow fromAB to A or B.
ZVP seres switch type electric valve can be installed in the valve is completed,and then install the actuator,field assembly,wiring and flexible,fast.
The valve is opened or closed,the action of light,no water vertical phenomenon,durable and reliable products,small occupied space,low noise,reliable work and high temperature environment can often appear in the device concealed fan coil in.
Technical data
公称压力PN(MPa) Nominal pressure |
1.0,1.6,2.5 | 适用介质 Suitable medium | 冷热水、蒸汽、非腐蚀性气体 Cold and hot water,steam,non corrosive gas |
公称通径DN(mm) Nominal diameter |
15~25 | 适用温度℃ Suitable temperature |
-25~200 |
泄漏量 Amount leakage | 小于Kvs值的0.02% Less than the Kvs value of 0.02% | 相对湿度 Relative humidity |
5~90%(执行器无结露Actuator without dewing) |
型号Model | 额定电压Rated voltage | 功率Power | 驱动电机Drive motor | 全程时间Whole time |
ZVP061 | AC220V±10% |
7W | 单向电机驱动 弹簧复位功能 Check the motor drive Spring reset function | 全开时间：通电后约10秒 关闭时间：断电后约5秒 Open time:electricity for about 10 seconds Closing time:offafter about 5 seconds |
AC110V±10% | ||||
AC24V±10% | ||||
ZVP062 |
AC220V±10% |
≤5W | 磁滞同步电机 弹簧复位功能 Hysteresis synchronous motor Spring reset function | 全开时间：通电后约6秒 关闭时间：断电后约4秒 Open time:electrncity for about 6 seconds Closing time:off after about 4 seconds |
ZVP063 |
Fan coil motor operated valve: Complete Technical Guide
The Fan Coil Motor Operated Valve is a precision-engineered control valve designed for regulating water flow in HVAC fan coil units. Integrated with a motorized actuator, it allows automatic, precise, and energy-efficient control of heating and cooling systems. This valve is widely used in commercial buildings, residential complexes, and industrial HVAC applications, providing reliable performance, easy integration with Building Management Systems (BMS), and enhanced occupant comfort.
This guide provides detailed insights into usage methods, upgrade solutions, customer feedback, and application strategies, supporting system optimization and long-term operational reliability.
Valve Body: Durable corrosion-resistant metal or alloy.
Control Disc / Gate: Precision-engineered for accurate water flow regulation.
Motorized Actuator: Enables automated and remote operation.
Sealing System: High-performance seals ensure leak-tight operation.
Flanged or Threaded Connections: Standardized connections for easy pipeline integration.
Automated control of fan coil unit water flow.
Energy-efficient operation through precise modulation.
Leak-tight design for minimal maintenance and reduced energy loss.
Remote operation and integration with BMS or building automation systems.
Durable construction suitable for commercial and industrial environments.
Proper use ensures optimal performance, energy efficiency, and longevity.
Pre-Installation Checks: Confirm valve size, actuator type, and system compatibility.
Positioning: Ensure proper alignment with flow direction and pipeline configuration.
Connection: Use flanged or threaded connections according to system requirements.
Electrical Wiring: Connect actuator according to manufacturer instructions and safety regulations.
Functional Testing: Test valve open/close and modulation range prior to commissioning.
| Step | Action | Notes |
|---|---|---|
| 1 | Power On | Ensure actuator is energized |
| 2 | Manual Override Test | Check manual control if required |
| 3 | Automatic Control | Connect to BMS or control panel |
| 4 | Adjust Flow Setpoint | Configure according to temperature or system demand |
| 5 | Monitor Performance | Observe water flow and temperature response |
Avoid operating beyond rated pressure and temperature.
Do not apply excessive force to actuator or valve body.
Ensure electrical connections follow local safety codes.
Provide manual override for emergency operations.
Upgrading existing fan coil valves can enhance performance, energy efficiency, and system integration.
Smart Actuators: Replace manual or basic electric actuators with intelligent motorized actuators for remote monitoring and automation.
BMS Integration: Connect valves to Building Management Systems for real-time control and energy optimization.
High-Performance Seals: Upgrade to advanced seals for reduced leakage and longer service life.
Flow Balancing Accessories: Integrate balancing devices to ensure even distribution of water in multi-zone systems.
Enhanced energy efficiency and cost savings.
Improved system responsiveness and occupant comfort.
Reduced maintenance frequency and downtime.
Compatibility with smart building technologies.
Customers consistently report the reliability, efficiency, and ease of integration of fan coil motor operated valves.
| Aspect | Customer Comment | Benefit |
|---|---|---|
| Energy Efficiency | "Our energy bills dropped by 15% after upgrading to motorized fan coil valves." | Reduced operational costs |
| Control Accuracy | "Temperature regulation is much more precise and stable." | Improved comfort and system efficiency |
| Reliability | "The valves perform consistently even in high-demand commercial applications." | Minimal downtime and maintenance |
| Ease of Integration | "Integration with our BMS was seamless and intuitive." | Streamlined building automation |
The Fan Coil Motor Operated Valve provides versatile solutions across various industries and applications.
Balances hot and chilled water flow to individual fan coil units.
Automates temperature control for multi-zone systems.
Reduces energy consumption through precise flow modulation.
Supports office buildings, hotels, and shopping centers.
Integrates with BMS for remote monitoring and scheduling.
Ensures consistent occupant comfort with minimal energy waste.
Controls water or fluid flow in manufacturing process HVAC systems.
Enhances system stability and reliability in industrial environments.
Reduces energy and maintenance costs by optimizing flow distribution.
Allows precise control of multiple zones in large buildings.
Enables automated adjustments based on occupancy or system demand.
Integrates easily with smart sensors and automated controllers.
Proper maintenance ensures long-term operation and system efficiency.
| Component | Frequency | Action |
|---|---|---|
| Valve Body & Disc | Monthly | Inspect for corrosion or damage |
| Seals & Gaskets | Quarterly | Check for wear or leakage; replace if necessary |
| Actuator | Quarterly | Test motor function, check wiring and torque output |
| Fasteners | Biannually | Tighten bolts and connections |
| Operational Test | Annually | Test full range of valve motion and control response |
| Issue | Possible Cause | Recommended Solution |
|---|---|---|
| Valve fails to open/close | Actuator malfunction | Check power supply, wiring, motor; repair or replace |
| Leakage | Worn seals or misaligned flanges | Replace seals, inspect gaskets, retighten bolts |
| Inaccurate temperature | Incorrect flow setpoint | Recalibrate actuator, verify control system signals |
| Noise or vibration | Turbulence or loose components | Inspect installation, secure fasteners, adjust flow rate |
Precise Temperature Control: Accurate flow modulation ensures stable HVAC operation.
Energy Efficiency: Reduces energy consumption through intelligent valve control.
Remote Monitoring and Control: Supports integration with BMS and smart building systems.
Durable and Reliable: Long service life with minimal maintenance.
Flexible Applications: Suitable for commercial, residential, and industrial HVAC systems.
Easy Installation and Upgrade: Compatible with existing piping and control systems.
The Fan Coil Motor Operated Valve is a reliable, energy-efficient solution for modern HVAC systems requiring precise flow control, remote operation, and smart integration. Through proper installation, usage, and maintenance, operators can achieve enhanced comfort, reduced energy costs, and improved system reliability.
Upgrading to motorized and intelligent valves provides advanced control capabilities, seamless BMS integration, and long-term operational benefits, making it an ideal choice for commercial, residential, and industrial HVAC applications worldwide.
