Lift Check Valve: Functions, Specifications, Troubleshooting, and FAQs

Introduction

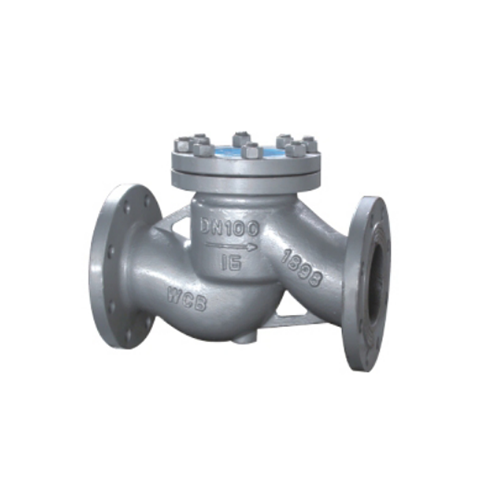

The lift check valve is a reliable non-return valve used to control fluid direction and prevent reverse flow in pipelines. Unlike Swing Check Valves that rely on a swinging disc, lift check valves operate with a guided disc that lifts vertically when fluid flows forward and seals tightly against the seat when flow reverses. This design provides excellent sealing performance, especially in high-pressure applications.

In this guide, we will explore the main functions, product parameters, troubleshooting and maintenance tips, and frequently asked questions (FAQs) to help engineers, procurement specialists, and operators better understand and apply lift check valves.

Main Functions of Lift Check Valve

1. Preventing Backflow

The core function of a lift check valve is to ensure one-way flow. When the medium flows in the forward direction, pressure lifts the valve disc. When flow stops or reverses, gravity and reverse pressure force the disc back into position, sealing the flow passage.

2. Protecting Equipment

Backflow in pipelines can damage pumps, compressors, and other sensitive equipment. Lift check valves safeguard these assets by preventing reverse flow.

3. Suitable for High-Pressure Systems

Due to their strong sealing performance, lift check valves are ideal for high-pressure pipelines in oil and gas, chemical, power generation, and water treatment industries.

4. Long Service Life

The guided disc movement reduces wear and tear, extending operational lifespan with minimal maintenance.

Product Parameters and Specifications

The specifications of lift check valves vary depending on material, size, and application. Below is a general product parameter table for reference:

These specifications ensure compatibility with international standards such as API, ASME, DIN, and ISO.

Troubleshooting and Maintenance

Although lift check valves are designed for durability, issues may arise due to operating conditions or wear.

Common Problems and Solutions

Maintenance Tips

• Perform regular inspections to check disc and seat condition.

• Clean valve internals during scheduled shutdowns.

• Replace gaskets and seals whenever the valve is reassembled.

• Store spare parts (disc, spring, seat) for quick replacement.

Frequently Asked Questions (FAQs)

Q1: What is the difference between a lift check valve and a swing check valve?

A lift check valve uses a guided vertical disc for sealing, offering tighter shutoff, especially in high-pressure systems. A swing check valve relies on a swinging disc and is more suitable for low-pressure or large-diameter pipelines.

Q2: Can lift check valves be installed in both horizontal and vertical pipelines?

Yes. Lift check valves can be installed in horizontal pipelines and in vertical pipelines with upward flow direction. Incorrect installation may cause malfunction.

Q3: What types of media are lift check valves suitable for?

They are commonly used for water, oil, steam, gas, and mild chemical fluids. For highly corrosive media, stainless steel or special alloy versions are recommended.

Q4: How often should lift check valves be maintained?

Routine inspections are recommended every 3–6 months, while full cleaning and overhauls can be performed annually, depending on system conditions.

Q5: What standards do lift check valves comply with?

Most lift check valves comply with API 6D, ASME B16.34, DIN EN, and ISO 9001 standards for safety, performance, and quality assurance.

Applications of Lift Check Valves

• Power Generation – preventing reverse flow in steam and cooling systems.

• Oil and Gas – protecting compressors and pipelines under high pressure.

• Water Supply Systems – ensuring safe one-way water transmission.

• Chemical Processing – handling fluids with varying temperature and corrosiveness.

• Industrial Manufacturing – safeguarding pumps in circulation systems.

Conclusion

The lift check valve is a highly efficient and dependable solution for preventing backflow in pipelines. With its guided disc mechanism, strong sealing performance, and suitability for high-pressure environments, it plays a critical role in protecting industrial systems.

By understanding the main functions, reviewing the product specifications, following proper troubleshooting and maintenance practices, and considering common FAQs, engineers and buyers can make informed decisions when selecting lift check valves for their projects.

For industries requiring reliable backflow prevention, safety, and long service life, the lift check valve remains a proven choice.
