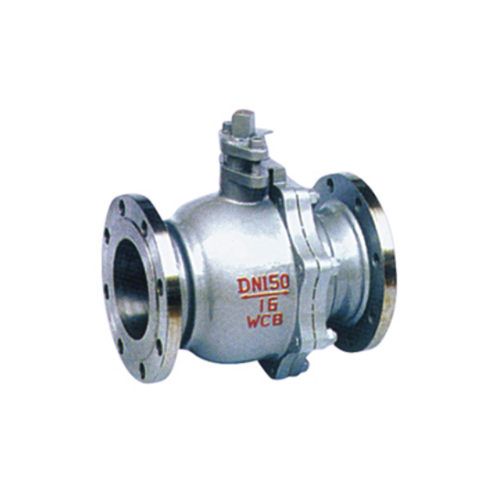

1,Basic design and manufacture standard:GB12237,JB/T7745,API6D,BS5351,ASMEB16.34.
2,The flange standard:ANSI B16.5,MSS-SP44,JB/T79-94,GB9112-9113-88,HGJ44-76-91.
3.Weld the end standard:ANSI B16.25.GB12224-89
4,Standard of length of structure:GB12221,GB12237,JB/T7745,ASMEB16.10,BS5351.
5,Try pressing the standard:API598,API6D,GB/T13927。
6,Suitable medium:Water,steam,liquefied petroleum gas,natural gas and corrosivity medium,etc.
7,The grade of pressure temperature of the material presses GB9131,ANSI B 16.5a.
8,Drive way:Manual,pneumatic,electronic,worm gear drive,etc.
Technical data
公称压力 PN(MPa) Nominal pressure |
最高使用压力 Use the pressure at most | 试验压力 Test pressure |
压力级 Class(Lb) Pressure grade |
最高使用压力 Use the pressure at most | 试验压力 Test pressure | ||||
壳体 Shell | 高压液密封 High-pressure liquid sealing | 低压气密封 low to calm the anger to seal | 壳体 Shell | 高压液密封 High-pressure liquid sealing | 低压气密封 low to calm the anger to seal | ||||
1.6 | 1.6 | 2.4 | 1.8 | 0.6 | 150 | 2.0 | 3 | 2.2 | 0.6 |
2.5 | 2.5 | 3.8 | 2.8 | 0.6 | 300 | 5.0 | 7.5 | 5.5 | 0.6 |
4.0 | 4.0 | 6.0 | 4.4 | 0.6 | 600 | 10 | 15 | 11 | 0.6 |
Meterial of main parts
零 件 名 称 Part name |
普通碳素钢系列 Series of ordinary carbon steel |
不锈钢系列 Seres of stainless steel |
低 温 钢 系 列 Low-temperature steel series |
抗硫系列Resist the sulphur series | |
GB标准 | N A C E 标 准 | ||||
阀体、左体 Valve body ,left body | WCB | CF8,CF8M,CF3,CF3M | LCB,LCC | WCB | CF8M |
球体Spheroid | F6a,WCB+HCr | CF8,CF8M,CF3,CF3M | LCB,LCC | WCB+HCr,F6a | CF8M |
阀座Valve seat | PTFE;烧结碳纤维;金属+橡胶组件;金属堆焊硬质合金;对位聚苯 PTFE;Sintering carbon fibre;Metal+rubber package;The metal piles and weldsthe hard alloy;Counterpoint polyphenyl | ||||
阀杆Valve stem | F6a | 304,316 | F6a | 318 | 316 |
阀座支承圈The vakveseat 5Upporting and enclosing | A105,Zn | 304,316 | A105,Zn | A105,Zn | 316 |
阀杆填料Valve stem packing | PTFE;碳纤维,柔性石墨PTFE;Carbon fibre,Flexible graphite | ||||
阀杆轴承、止推轴承 Bearing of the valve stem, stopping pushing the bearing |
金属衬PTFE;烧结碳纤维 The metal is lined with PTFE;Sintering carbon fibre | ||||
填料压环 The pack ing presses the ring | F6a | 304,316 | F6a | F6a | 316 |
弹簧Spring | 3Yc-7 | ||||
双头螺柱 One pair of spiral shels'post | A193-B7 | A193-B8、B8M | A320-L7 | A193-B7 | A193-B7 |
螺母Nut |
A194-2H | A194-8 | A194-4 | A194-2H, |
A194-2H |
压盖Press and cover | WCB,A105 | ||||
Main dimensions
PN(MPa) | DN(mm) | D | D1 | D2 | D3 | D4 | f | f1 | b | n-φd | L | H | W |
1.6 | 15 | 13 | 45 | 65 | 95 | 2 | 14 | 4-14 | 130 | 75 | 130 | ||
20 | 19 | 55 | 75 | 105 | 2 | 14 | 4-14 | 140 | 84 | 170 | |||
25 | 25 | 65 | 85 | 115 | 2 | 14 | 4-14 | 150 | 90 | 170 | |||
32 | 32 | 78 | 100 | 135 | 2 | 16 | 4-18 | 165 | 107 | 200 | |||
40 | 38 | 85 | 110 | 145 | 3 | 16 | 4-18 | 180 | 127 | 250 | |||
50 | 51 | 100 | 125 | 160 | 3 | 16 | 4-18 | 200 | 140 | 250 | |||
65 | 64 | 120 | 145 | 180 | 3 | 18 | 4-18 | 220 | 164 | 350 | |||
80 | 76 | 135 | 160 | 195 | 3 | 20 | 8-18 | 250 | 177 | 350 | |||
100 | 102 | 155 | 180 | 215 | 3 | 20 | 8-18 | 280 | 206 | 420 | |||
125 | 127 | 185 | 210 | 245 | 3 | 22 | 8-18 | 320 | 292 | 700 | |||
150 | 152 | 210 | 240 | 280 | 3 | 24 | 8-23 | 360 | 320 | 1000 | |||
200 | 203 | 265 | 295 | 335 | 3 | 26 | 12-23 | 400 | 365 | 1300 | |||
250 | 254 | 320 | 355 | 405 | 3 | 30 | 12-25 | 533 | 420 | 1800 | |||
2.5 | 15 | 13 | 45 | 65 | 95 | 2 | 14 | 4-14 | 130 | 75 | 130 | ||
20 | 19 | 55 | 75 | 105 | 2 | 14 | 4-14 | 140 | 84 | 170 | |||
25 | 25 | 65 | 85 | 115 | 2 | 14 | 4-14 | 150 | 90 | 170 | |||
32 | 32 | 78 | 100 | 135 | 2 | 16 | 4-18 | 165 | 107 | 200 | |||
40 | 38 | 85 | 110 | 145 | 3 | 16 | 4-18 | 180 | 127 | 250 | |||
50 | 51 | 100 | 125 | 160 | 3 | 20 | 4-18 | 200 | 140 | 250 | |||
65 | 64 | 120 | 145 | 180 | 3 | 22 | 8-18 | 220 | 164 | 350 | |||
80 | 76 | 135 | 160 | 195 | 3 | 22 | 8-18 | 250 | 177 | 350 | |||
100 | 102 | 160 | 190 | 230 | 3 | 24 | 8-23 | 280 | 206 | 420 | |||
125 | 127 | 188 | 220 | 270 | 3 | 28 | 8-25 | 320 | 292 | 700 | |||
150 | 152 | 218 | 250 | 300 | 3 | 30 | 8-25 | 360 | 320 | 1000 | |||
200 | 203 | 278 | 310 | 360 | 3 | 34 | 12-25 | 400 | 365 | 1300 | |||
250 | 254 | 332 | 370 | 425 | 3 | 36 | 12-30 | 533 | 420 | 1800 | |||
4.0 | 15 | 13 | 45 | 65 | 95 | 40 | 2 | 4 | 16 | 4-14 | 140 | 75 | 130 |
20 | 19 | 55 | 75 | 105 | 51 | 2 | 4 | 16 | 4-14 | 152 | 84 | 170 | |
25 | 25 | 65 | 85 | 115 | 58 | 2 | 4 | 16 | 4-14 | 165 | 90 | 170 | |
32 | 32 | 78 | 100 | 135 | 66 | 2 | 4 | 18 | 4-18 | 178 | 107 | 200 | |
40 | 38 | 85 | 110 | 145 | 76 | 3 | 4 | 18 | 4-18 | 190 | 127 | 250 | |
50 | 51 | 100 | 125 | 160 | 88 | 3 | 4 | 20 | 4-18 | 216 | 140 | 250 | |
65 | 64 | 120 | 145 | 180 | 110 | 3 | 4 | 22 | 8-18 | 241 | 164 | 350 | |
80 | 76 | 135 | 160 | 195 | 121 | 3 | 4 | 22 | 8-18 | 283 | 177 | 350 | |
100 | 102 | 160 | 190 | 230 | 150 | 3 | 4.5 | 24 | 8-23 | 305 | 206 | 420 | |
125 | 127 | 188 | 220 | 270 | 176 | 3 | 4.5 | 28 | 8-25 | 381 | 292 | 700 | |
150 | 152 | 218 | 250 | 300 | 204 | 3 | 4.5 | 30 | 8-25 | 403 | 320 | 1000 | |
200 | 203 | 282 | 320 | 375 | 260 | 3 | 4.5 | 38 | 12-30 | 502 | 365 | 1300 |
Float Ball valve – Comprehensive Product Guide
A float ball valve is a highly reliable and widely used control device designed to automatically regulate the flow of liquid in a tank or pipeline system. It operates by utilizing the buoyancy of a hollow float ball, which rises or falls with the liquid level, opening or closing the valve accordingly. This design eliminates the need for constant manual supervision, making it an ideal choice for water tanks, cooling systems, industrial storage units, and agricultural irrigation.
Float ball valves are valued for their automatic control, corrosion resistance, and durability. They are commonly manufactured from materials such as stainless steel, brass, or engineering plastics, ensuring high strength and long service life.
Float ball valves deliver consistent performance under a wide range of operating conditions. Their key performance characteristics include:
Automatic Liquid Level Control – The float rises with liquid levels and shuts off the valve once the preset limit is reached, preventing overflow.
Durability – Made from corrosion-resistant materials, ensuring longevity in water, oil, or mild chemical applications.
Leak-tight Sealing – Advanced sealing technology ensures zero or minimal leakage during operation.
Low Maintenance – Simple design with few moving parts reduces the need for frequent servicing.
Energy Saving – Operates without external power supply, reducing operational costs.
| Parameter | Typical Value/Range |
|---|---|
| Working Pressure | 0.6 MPa – 1.6 MPa |
| Suitable Media | Water, oil, light chemicals |
| Operating Temperature | -10°C to +120°C |
| Valve Body Material | Stainless Steel / Brass / Plastic |
| Float Material | Stainless Steel / Plastic |
| Sealing Type | Soft seal or metal seal |
| Service Life | Up to 50,000 cycles |
Proper installation is crucial for maximizing the efficiency and lifespan of a float ball valve. Follow these guidelines:
Preparation
Inspect the valve and pipeline to ensure they are free of debris.
Confirm compatibility of valve size, pressure rating, and materials with your system.
Installation Position
Install vertically for water tanks and horizontal tanks.
Ensure the float has enough clearance to move freely without obstruction.
Mounting Steps
Attach the valve securely to the pipeline connection.
Position the float arm horizontally for optimal sensitivity.
Tighten fittings with appropriate torque to avoid leaks.
Testing
Slowly fill the tank and observe the float movement.
Adjust the float arm if necessary to set the desired liquid level.
Ensure smooth shut-off when the tank reaches the preset level.

Float ball valves stand out from conventional manual and automated valves due to their distinctive technical benefits:
Automatic Operation – No external power or sensors are required.
Simple Structure – Fewer components mean reduced risk of malfunction.
Versatility – Suitable for residential, agricultural, and industrial liquid management.
High Reliability – Proven performance in continuous operation environments.
Cost-effectiveness – Low purchase and maintenance cost compared to electronic level controllers.
Environmental Compliance – Helps reduce water waste by preventing overflow.
The technical parameters of float ball valves vary by model and manufacturer, but the following table represents typical specifications:
| Specification | Details |
|---|---|
| Nominal Diameter (DN) | DN15 – DN100 |
| Connection Type | Threaded / Flanged / Welded |
| Working Pressure | PN10, PN16, PN25 |
| Float Size | 50 mm – 150 mm diameter |
| Valve Material Options | Stainless Steel 304/316, Brass |
| Float Material Options | Stainless Steel / HDPE / ABS |
| Standard Compliance | ISO, DIN, ANSI, GB |
Float ball valves are widely adopted in various industries due to their reliability:
Water Supply Systems – Automatically controls the inflow in water tanks and reservoirs.
Agriculture and Irrigation – Maintains optimal water levels in irrigation channels and storage tanks.
Industrial Processes – Used in cooling systems, oil tanks, and chemical storage.
Residential Use – Found in rooftop water tanks, cisterns, and household filtration systems.
Regularly check for scale or debris buildup around the sealing surface.
Inspect the float ball for damage, corrosion, or leaks.
Do not exceed the rated working pressure to avoid damage.
Replace worn seals promptly to maintain leak-proof performance.
Store spare valves in dry, ventilated conditions away from corrosive substances.
Modern float ball valves comply with international environmental and water safety standards, ensuring that they minimize water waste and energy consumption. Many models conform to RoHS, ISO 9001, and CE certifications. Stainless steel options are also highly recyclable, supporting sustainable development goals.
The float ball valve is a practical, cost-effective, and environmentally friendly solution for liquid level control across multiple sectors. With its automatic operation, robust construction, and reliable sealing performance, it has become a trusted choice in water supply, industrial storage, and agricultural systems. By following proper installation, maintenance, and technical guidelines, users can ensure long service life and optimal performance of their float ball valve systems.
