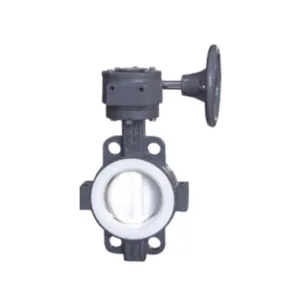

Worm Gear PTFE Lined Wafer Butterfly Valve: A Comprehensive Overview The worm gear-operated PTFE (polytetrafluoroethylene) lined wafer butterfly valve is a highly efficient and versatile flow control device widely used in industrial applications. Designed for on/off and throttling services, this valve combines the benefits of a compact wafer-style body, corrosion-resistant PTFE lining, and a reliable worm gear operator to deliver optimal performance in demanding environments. Design and Construction The valve features a wafer-style body, which allows for easy installation between flanges without requiring additional nuts or bolts. This design minimizes space requirements and reduces weight, making it ideal for systems with limited installation space. The body is typically constructed from ductile iron, cast iron, or stainless steel, ensuring durability and resistance to high pressures. The sealing mechanism consists of a PTFE-lined disc, which provides excellent chemical resistance against corrosive fluids, acids, and alkalis. PTFE’s non-stick properties also prevent clogging and ensure smooth operation. The disc rotates 90 degrees to open or close the flow path, offering quick and precise flow control. Worm Gear Operation The worm gear actuator enhances the valve’s performance by providing mechanical advantage, allowing for easier manual operation even in high-pressure systems. The gear mechanism reduces the required handwheel torque, making it suitable for larger valve sizes where direct hand lever operation would be impractical. Additionally, the worm gear design ensures self-locking, preventing unintended movement due to fluid pressure or vibration. Applications This type of butterfly valve is commonly used in: - Chemical processing – Resistant to aggressive media. - Water and wastewater treatment – Handles slurries and corrosive fluids. - Pharmaceutical and food industries – Compliant with hygienic standards. - HVAC systems – Efficient flow regulation in heating and cooling systems. Advantages - Corrosion resistance – PTFE lining protects against harsh chemicals. - Low maintenance – Simple design with minimal moving parts. - Cost-effective – Lightweight and easy to install compared to gate or globe valves. - Bubble-tight shut-off – Ensures zero leakage in closed positions. Conclusion The worm gear PTFE-lined wafer butterfly valve is a robust, reliable, and economical solution for flow control in various industries. Its corrosion-resistant properties, ease of operation, and compact design make it a preferred choice for applications requiring durability and efficiency. Whether used in chemical plants, water treatment facilities, or HVAC systems, this valve delivers consistent performance under challenging conditions.
