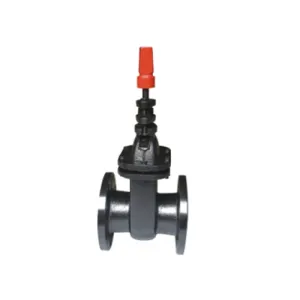

Non-Rising Stem Cone-Shaped Underground Gate Valve: Description and Features A non-rising stem cone-shaped underground gate valve is a specialized type of valve designed for buried or subterranean applications, commonly used in water supply, irrigation, wastewater systems, and other utility networks. Its unique design ensures reliable operation while minimizing above-ground space requirements, making it ideal for installations where surface clearance is limited or aesthetics are a concern. Design and Construction The valve features a cone-shaped (or wedge-shaped) gate, which moves perpendicular to the flow path to control fluid passage. Unlike rising stem gate valves, the stem of this valve does not extend above the actuator when operated. Instead, the stem threads into the gate, causing it to rise or lower internally without changing the valve’s external height. This design allows the valve to be installed entirely below ground level, with only the operating nut or handwheel accessible via a valve box or extension stem. Key components include: - Body: Typically made of ductile iron, cast iron, or bronze, designed to withstand underground pressure and corrosion. - Gate/Wedge: A cone-shaped disc that forms a tight seal against the valve seats when closed. - Non-Rising Stem: Threaded internally to move the gate without protruding above the valve. - Seats: Often lined with resilient materials (e.g., EPDM or Buna-N) for a bubble-tight shutoff. - Bonnet: Bolted or threaded to the body, protecting internal components from soil and debris. - Actuation: Operated via a handwheel, wrench, or T-key, often connected via an extension stem for above-ground access. Advantages 1. Space-Saving: The non-rising stem eliminates the need for vertical clearance, making it suitable for confined or buried installations. 2. Durability: Robust materials and coatings (e.g., epoxy or fusion-bonded) resist corrosion and soil stresses. 3. Low Maintenance: Underground placement reduces exposure to environmental damage, though periodic lubrication of the stem may be required. 4. Leak-Free Performance: The cone-shaped gate ensures a tight seal, minimizing water loss. Applications - Water Distribution: Controls flow in municipal or industrial pipelines. - Sewage Systems: Used in wastewater lines due to its resistance to debris. - Irrigation: Manages water flow in agricultural systems. Installation Considerations - Proper bedding and backfilling are critical to avoid misalignment or stress. - Valve boxes or extension stems must be used for easy access. - Regular inspections prevent stem seizure due to soil ingress or corrosion. In summary, this valve combines compact design, reliability, and corrosion resistance, making it a practical choice for subterranean fluid control.
