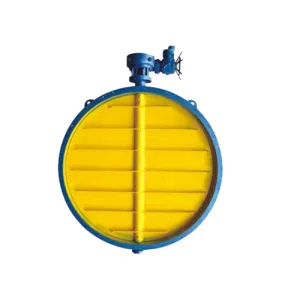

HVAC Flange-Connected Butterfly Valve: An Overview A flange-connected butterfly valve is a critical component in HVAC (Heating, Ventilation, and Air Conditioning) systems, designed to regulate or isolate the flow of air, water, or other fluids within ducts or piping networks. Its compact design, ease of operation, and reliable performance make it a preferred choice for various HVAC applications, including commercial buildings, industrial facilities, and residential systems. Design and Construction The valve consists of a circular disc mounted on a rotating shaft, which acts as the flow control mechanism. When the disc is parallel to the flow direction, the valve is fully open, allowing maximum fluid passage. Rotating the disc 90 degrees positions it perpendicular to the flow, effectively shutting off the medium. The flange connections on either side of the valve body enable secure attachment to ductwork or piping systems, ensuring a leak-proof seal. Key components include: - Body: Typically made of ductile iron, cast iron, or stainless steel for durability and corrosion resistance. - Disc: Constructed from materials like aluminum, stainless steel, or composite polymers, depending on the application. - Seat: Often lined with elastomers (e.g., EPDM or Viton) to enhance sealing and reduce wear. - Actuator: Manual levers, gear operators, or automated actuators (electric, pneumatic, or hydraulic) control disc rotation. Functionality and Advantages Flange-connected butterfly valves offer several benefits in HVAC systems: 1. Efficient Flow Control: The quarter-turn operation allows quick adjustment, making it ideal for systems requiring frequent modulation. 2. Space-Saving Design: Compared to gate or globe valves, butterfly valves have a compact profile, reducing installation space requirements. 3. Low Pressure Drop: When fully open, the disc creates minimal obstruction, optimizing energy efficiency. 4. Versatility: Suitable for a wide range of temperatures and pressures, as well as different media (air, water, glycol, etc.). 5. Easy Maintenance: The simple design facilitates inspection and replacement of seals or discs without extensive disassembly. Applications in HVAC Systems These valves are commonly used in: - Air Handling Units (AHUs): To regulate airflow in supply or return ducts. - Chilled Water Systems: For controlling coolant flow in hydronic heating/cooling networks. - Ventilation Systems: Balancing airflow in commercial or industrial exhaust systems. - Fire Protection Systems: Acting as isolation valves in sprinkler or standpipe installations. Selection Considerations When choosing a flange-connected butterfly valve, factors such as pressure rating, temperature range, media compatibility, and actuation method must be evaluated. Proper sizing ensures optimal performance, while material selection impacts longevity in corrosive or high-temperature environments. Conclusion The flange-connected butterfly valve is a versatile, cost-effective solution for HVAC flow control, combining simplicity, reliability, and efficiency. Its adaptability to diverse system requirements makes it indispensable in modern HVAC infrastructure.
