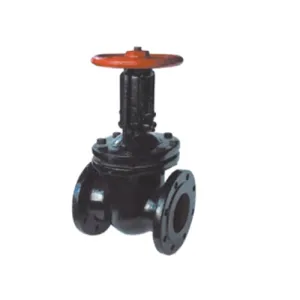

Description of a Cuneiform Gate Valve A cuneiform gate valve is a specialized type of industrial valve designed for controlling the flow of fluids in pipelines. Its name derives from the wedge-shaped (cuneiform) disc that moves perpendicularly to the flow path to open or close the valve. This design ensures a tight seal, making it highly effective for applications requiring full shut-off capability. Design and Construction The valve consists of several key components: 1. Body: Typically made from durable materials like cast iron, carbon steel, or stainless steel, the body houses the internal mechanisms and connects to the pipeline via flanged or threaded ends. 2. Wedge Disc: The cuneiform-shaped disc is the sealing element, which slides between two inclined seats to block or permit flow. The wedge design enhances sealing efficiency, especially under high-pressure conditions. 3. Stem: A threaded or rising stem connects the disc to the handwheel or actuator. When rotated, the stem moves the disc up or down to adjust the valve position. 4. Seats: The valve features two parallel or slightly angled seats that match the disc’s profile, ensuring a leak-proof closure when fully shut. 5. Bonnet: This cover protects the stem and internal components while maintaining pressure integrity. Working Principle The valve operates linearly—turning the handwheel rotates the stem, forcing the wedge disc to lift (open) or descend (close). In the open position, the disc retracts entirely into the bonnet, allowing unrestricted flow. When closed, the wedge presses firmly against the seats, creating a robust seal even under high differential pressures. Advantages - Bidirectional Sealing: Effective in both flow directions. - Low Flow Resistance: Minimal pressure drop when fully open. - Durability: Suitable for high-pressure and high-temperature applications. - Tight Shut-Off: The wedge design minimizes leakage risks. Applications Cuneiform gate valves are widely used in: - Oil and gas pipelines - Water treatment plants - Chemical processing - Power generation - HVAC systems Maintenance Considerations Regular lubrication of the stem and inspection of the sealing surfaces are essential to prevent wear and ensure longevity. In summary, the cuneiform gate valve is a reliable, high-performance solution for flow control, offering excellent sealing and durability across demanding industrial environments.
