This series of fan-shaped glasss blind plate valve,also known as valves,flap valves, fan-shaped valve,at off the gas line equipment and reliable media GB622286 "Industial Gas Safety Regulations requirements Used in industnial and mining enterprises,municipal,environmental protection and other industries in the gas medium pipeline system,especially for hazardous,toxic,flammable gas absolute aut end of the pipe is also suitable as blind to shorten the repair time or the easy connedion of new piping system.
This series of fan-shaped blind plate valve compared with other do absolutely aut off valve in the pipeline equipment,has a novel strudure,light weight,small size,easy opera- ton,and prompt action to cut off gas performanoe is absolutely reliable.
Technical data
公称压力PN(MPa) Nominal pressure | 0.25 | 0.15 | 0.10 | 0.05 | ||
密封试验压力(MPa) Sealing test pressure | 0.275 | 0.165 | 0.11 | 0.055 | ||
强度试验压力(MPa) Strength test pressure | 0.40 | 0.225 | 0.15 | 0.075 | ||
适用温度 Applicable temperature | 丁腈橡胶 Nitrile rubber | 硅橡胶 Silicone rubber | 氟橡胶 Viton rubber | |||
<120℃ | <250℃ | <300℃ | ||||
适用介质 Applicable medium | 煤气等有毒、有害、易燃气体 Gas and other taxic,hazardous,flammable gases | |||||
采用标准 Standard | 连接法兰尺寸符合JB/T81-94标准,检测方法符合GB/T13927-92标准 JB/T81-94 connecting flange dimensions confom to standards, testing methods oonfom to standards GB/T13927-92 | |||||
主要零件材料 Main parts and materials | 阀体、阀板为碳素钢;连接轴、伸缩器为碳素钢或不锈钢;密封圈为橡胶 Body,the valve plate is carbon steel;connecting shat, expansion joints of carbon steel or stainless steel rubber seals | |||||
Main dimensions and weight
DN |
L |
D |
D1 |
A |
H |
b |
n-φd | 重量(kg)Weight | |||
PN0.05 | PN0.1 | PN0.15 | PN0.25 | ||||||||
300 | 450 | 440 | 395 | 480 | 720 | 16 | 12-φ22 | 255 | 255 | 280 | 280 |
350 | 450 | 490 | 445 | 520 | 810 | 16 | 12-φ22 | 285 | 285 | 310 | 310 |
400 |
450 |
540 | 495 | 600 |
920 |
16 | 16-φ22 |
300 |
300 | 330 |
330 |
450 | 500 | 595 | 550 | 658 | 995 | 16 | 16-φ22 | 350 | 350 | 380 | 380 |
500 | 500 | 645 | 600 | 712 | 1102 | 20 | 20-φ22 | 400 | 400 | 440 | 440 |
600 | 600 | 755 | 705 | 920 | 1500 | 20 | 20-φ26 | 500 | 500 | 550 | 550 |
700 | 600 | 860 | 810 | 970 | 1600 | 20 | 24-φ26 | 580 | 580 | 630 | 630 |
800 |
800 |
975 |
920 |
1100 |
1850 |
35 |
24-φ30 | 1500 | 1500 | 1650 | 1650 |
900 | 800 | 1075 | 1020 | 1200 | 1980 | 35 | 24-φ30 | 1800 | 1800 | 1980 | 1980 |
1000 |
800 |
1175 |
1120 |
1320 |
2200 |
35 |
26-φ30 |
2100 |
2100 |
2300 |
2300 |

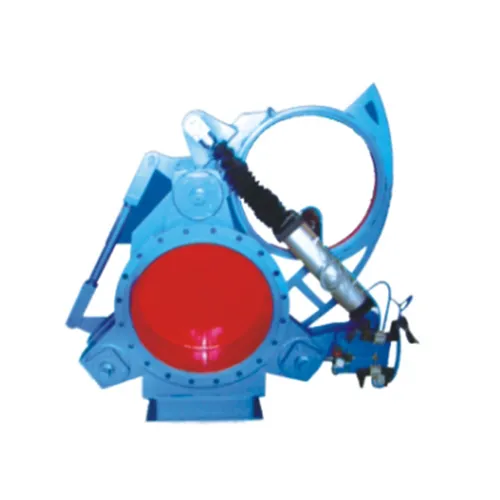

Pneumatic fan blind plate valve: Complete Technical Guide
The Pneumatic Fan Blind Plate Valve is a critical component for industrial airflow management, designed to provide reliable air isolation and shut-off in ventilation, exhaust, and duct systems. Equipped with a pneumatic actuator, this valve enables fast and precise opening and closing, ensuring system safety, operational efficiency, and ease of maintenance.
Widely used in HVAC systems, industrial fans, power plants, and environmental control projects, the pneumatic fan blind plate valve is built from corrosion-resistant materials, offering long-term durability and low maintenance. This guide covers maintenance procedures, technical support, troubleshooting, and operational tips, helping engineers and operators maximize performance and service life.
The pneumatic fan blind plate valve consists of:
Valve body: Made of stainless steel, carbon steel, or aluminum alloy for corrosion resistance and strength.
Blind plate (disc): The main component that blocks airflow when closed.
Pneumatic actuator: Controls rapid opening and closing of the valve.
Sealing system: Ensures leak-tight shut-off for safe operation.
Control linkage: Connects the actuator to the plate for fast response.
Fast-acting pneumatic operation for rapid shut-off.
Durable, corrosion-resistant construction for harsh industrial environments.
Leak-tight sealing to prevent airflow loss.
Low maintenance design suitable for continuous operation.
Compact structure allowing easy integration into ventilation systems.
Regular maintenance is essential to ensure the valve’s efficiency, reliability, and long service life.
| Component | Frequency | Action Required |
|---|---|---|
| Valve body | Monthly | Check for corrosion, cracks, or mechanical damage |
| Blind plate | Quarterly | Inspect for surface wear, scratches, or deformation |
| Seals and gaskets | Quarterly | Replace if signs of wear or leakage are observed |
| Pneumatic actuator | Quarterly | Test movement, check air supply and cylinder operation |
| Fasteners (bolts & nuts) | Biannually | Check tightness and replace damaged hardware |
| Functional operation | Annually | Conduct full open/close test under system conditions |
Cleaning: Remove dust, debris, or residue from the valve body and actuator components.
Lubrication: Apply non-corrosive grease to moving parts to reduce wear and maintain smooth operation.
Seal Replacement: Replace worn or degraded gaskets to maintain leak-free performance.
Actuator Check: Inspect pneumatic lines, fittings, and cylinder performance regularly.
Operational Test: Periodically operate the valve to ensure rapid and accurate response.

For proper installation, operation, and troubleshooting, technical support is essential.
Installation Guidance: Step-by-step support for proper placement, alignment, and connection of the valve.
Calibration Assistance: Ensuring actuator travel and response match system requirements.
System Integration: Guidance on integrating with HVAC control systems or industrial automation networks.
Documentation: Comprehensive manuals, performance reports, and inspection certificates for compliance.
Always have the valve model and serial number ready when contacting technical support.
Provide system pressure, airflow, and actuator type for precise recommendations.
Keep installation drawings and maintenance records available to streamline troubleshooting.
Even with proper maintenance, occasional operational issues may arise. The following table summarizes common problems and solutions for pneumatic fan blind plate valves.
| Issue | Possible Cause | Recommended Solution |
|---|---|---|
| Valve fails to open/close | Pneumatic actuator malfunction | Inspect air supply, check cylinder, repair/replace actuator |
| Air leakage | Worn seals or gasket misalignment | Replace seals, check gasket seating and flange connection |
| Slow or uneven operation | Air pressure fluctuation or blockage | Check pneumatic supply, clean actuator lines, adjust pressure regulator |
| Noise or vibration | Loose bolts or misaligned plate | Tighten fasteners, realign blind plate |
| Sticking or jamming | Debris inside valve or actuator linkage | Clean valve interior, lubricate moving parts, inspect linkage |
Replace damaged or worn components with manufacturer-approved parts.
Use proper torque settings when tightening fasteners to avoid deformation.
Perform functional testing after repair to ensure leak-tight operation and actuator response.
Proper operation ensures safety and optimal performance.
Verify air supply pressure matches actuator requirements.
Ensure valve orientation and alignment with ducting.
Confirm manual override accessibility in case of pneumatic failure.
Check seal and gasket integrity before initial operation.
Perform functional testing by opening and closing the valve slowly.
Do not exceed the valve’s rated pressure and temperature.
Avoid operating with abrasive or highly corrosive media beyond design limits.
Ensure operators are trained on actuator operation and emergency procedures.
Periodically inspect pneumatic lines and connections for leaks or wear.
Operate the valve at moderate speeds during normal use to prevent actuator shock.
Avoid frequent rapid cycling unless the system and actuator are designed for it.
Maintain a clean environment around the valve to reduce dust and debris accumulation.
Rapid shut-off capability improves safety in ventilation and industrial systems.
Durable construction resists corrosion, wear, and high-pressure operation.
Leak-tight performance ensures energy efficiency and system reliability.
Low maintenance design reduces downtime and operational costs.
Compact design allows easy integration into existing HVAC and duct systems.
Versatile applications across industrial fans, power plants, chemical processes, and environmental control.
The Pneumatic Fan Blind Plate Valve is an essential solution for precise airflow isolation and control in industrial ventilation and duct systems. By following proper maintenance procedures, operational tips, and troubleshooting guidelines, operators can maximize the valve’s performance, reliability, and lifespan.
Technical support and regular inspection ensure that any operational issues are resolved quickly, maintaining safe and efficient system operation. With its fast response, durable construction, and low maintenance design, the pneumatic fan blind plate valve is ideal for industrial applications that demand safety, precision, and long-term reliability.
