Mutual weld type metal hard sealing butterfly valve – Complete Guide

Introduction

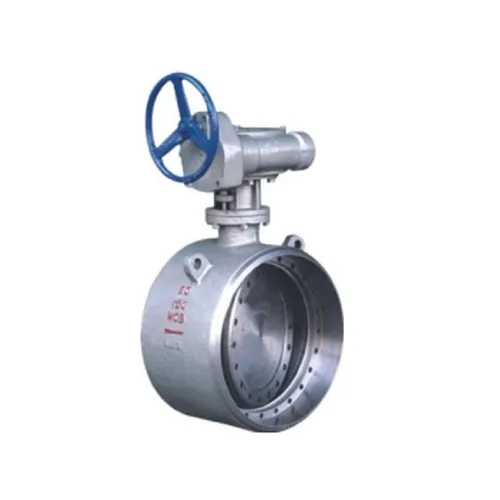

The Mutual Weld Type Metal Hard Sealing Butterfly Valve is a specialized industrial valve designed for high-pressure, high-temperature, and corrosive pipeline applications. Its metal-to-metal welded sealing surface provides exceptional durability, wear resistance, and leak-proof performance under harsh operating conditions.

This valve is widely used in chemical, petrochemical, power generation, oil & gas, and environmental engineering systems, where reliable sealing and long service life are critical. This guide focuses on environmental compliance, technical specifications, operational precautions, and upgrade maintenance plans for optimal valve performance.

Environmental Standards

Environmental regulations increasingly influence valve design and manufacturing. The Mutual Weld Type Metal Hard Sealing Butterfly Valve meets stringent industrial and environmental protection standards, including:

• ISO 14001 Compliance – Ensures manufacturing processes minimize environmental impact.

• RoHS Directive Compliance – Limits hazardous substances in materials.

• API 609 / ISO 5752 – Ensures valves meet international quality and safety standards.

• Environmental Safety for Emissions – Welded metal seats prevent leakage of hazardous chemicals.

These certifications guarantee that the valve is eco-friendly, safe, and reliable, making it suitable for green energy projects and environmentally sensitive industrial applications.

Specifications and Models

The Mutual Weld Type Metal Hard Sealing Butterfly Valve comes in a range of sizes, materials, and pressure classes to meet diverse industrial requirements.

Model Variants

1. Standard Welded Butterfly Valve – Basic model with manual operation, suitable for general industrial pipelines.

2. High-Temperature Welded Valve – Designed for steam, hot oil, or high-temperature chemical pipelines.

3. Corrosion-Resistant Welded Valve – Uses stainless or alloy steel for aggressive chemical media.

4. Actuated Welded Valve – Equipped with electric or pneumatic actuators for automated process control.

Operational Precautions

Proper handling and operation are essential for safe and efficient performance:

1. Pre-Operation Checklist

• Ensure all flanges, bolts, and seals are correctly installed.

• Confirm the actuator or manual handle operates smoothly without obstruction.

• Check for foreign objects in the pipeline before opening the valve.

2. Operation Guidelines

• Open and close slowly to prevent hydraulic shock or pressure surges.

• Operate within the specified pressure and temperature ranges to avoid damage to the metal seat.

• Ensure the disc rotates fully into the open or closed position for tight sealing.

3. Safety Measures

• Always wear appropriate personal protective equipment (PPE) when handling high-temperature or chemical media.

• Follow lockout/tagout procedures for maintenance to prevent accidental actuation.

• Use pressure gauges to monitor the system during valve operation, especially in high-pressure pipelines.

Maintenance and Upgrade Plan

Regular maintenance ensures long service life and reliable performance. A proactive upgrade and maintenance plan can prevent unexpected downtime and extend valve life.

Routine Maintenance

• Visual Inspection: Monthly checks for corrosion, cracks, and leakage.

• Seat & Seal Inspection: Every 6 months, inspect the metal seat and gaskets for wear or damage.

• Actuator Check: Quarterly, verify torque, responsiveness, and position indicators.

• Lubrication: Apply recommended lubricants to moving parts to ensure smooth operation.

Maintenance Schedule

Upgrade Plan

1. Actuator Upgrades – Replace manual operation with electric or pneumatic actuators for automated systems.

2. Material Upgrade – For highly corrosive or abrasive media, upgrade body and seat materials to high-alloy steels.

3. Seal Enhancement – Integrate advanced composite gaskets to complement the metal seat for enhanced sealing.

4. Monitoring Systems – Install position sensors, flow meters, or leak detection systems for critical pipelines.

Performance Testing

Performance testing validates operational reliability under industrial conditions:

1. Pressure and Leak Testing

• Hydrostatic or pneumatic testing at maximum rated pressure.

• Confirm zero leakage at body, disc, and flange connections.

2. Temperature Testing

• Operate the valve at the maximum and minimum temperature limits.

• Ensure the metal seat maintains tight sealing under thermal expansion.

3. Torque and Flow Control

• Measure opening and closing torque to ensure smooth operation.

• Verify that the valve modulates flow without vibration or pressure fluctuations.

Applications

The Mutual Weld Type Metal Hard Sealing Butterfly Valve is widely used in industries that demand reliable sealing under extreme conditions:

• Chemical & Petrochemical Plants – Corrosive chemicals, acids, and alkalis.

• Power Generation – Steam pipelines, high-temperature fluids.

• Oil & Gas Industry – High-pressure crude oil, refined products, or gas pipelines.

• Water & Wastewater Treatment – Abrasive slurries and industrial water systems.

• Industrial Manufacturing – Handling abrasive, high-temperature, or corrosive media.

Conclusion

The Mutual Weld Type Metal Hard Sealing Butterfly Valve offers exceptional durability, tight sealing, and reliable performance for high-pressure, high-temperature, and corrosive pipeline applications. Its metal-to-metal welded seat ensures long-term leak-free operation, reducing maintenance costs and minimizing downtime.

By adhering to operational precautions, scheduled maintenance, and upgrade plans, industries can maximize valve lifespan and performance. Suitable for chemical, petrochemical, power generation, oil & gas, and water treatment sectors, this valve provides a robust, eco-friendly, and efficient flow control solution.
