Gate Valve Series: High-Quality and Durable Valves for Industrial Needs

Introduction

The Gate Valve Series offers robust and durable solutions designed to control the flow of liquids and gases in pipelines. Whether you are managing a water treatment plant, a chemical processing facility, or an oil and gas operation, the reliability and efficiency of gate valves are critical to maintaining system performance. Designed to withstand extreme pressures, high temperatures, and corrosive environments, our gate valves are the ideal choice for industries that demand longevity and reliable operation.

This article will provide an in-depth overview of the Gate Valve Series, including its structure, operating instructions, material specifications, and transportation guidelines.

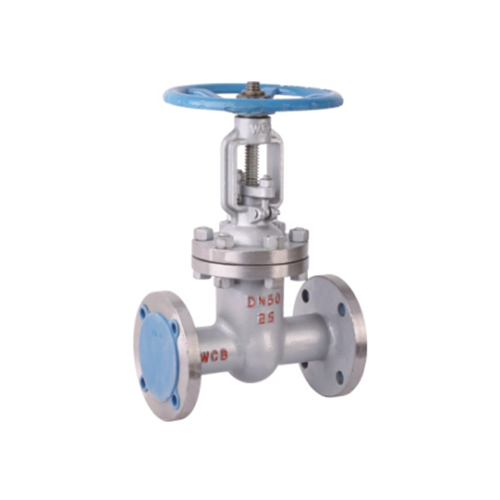

Structure Overview of the Gate Valve Series

The Gate Valve Series is designed with simplicity and performance in mind. The main components of the valve work together seamlessly to ensure the smooth operation of industrial systems.

1. Valve Body

The body of the gate valve is the main structural component that houses all internal parts. It is typically made from high-quality materials such as carbon steel, stainless steel, or alloy steel, depending on the application’s requirements.

• Functions: Acts as the housing for the internal components and provides a sealing surface to prevent leaks.

• Design: It is often designed to withstand the high pressures and corrosive conditions found in industrial settings.

2. Gate (Disc)

The gate, also known as the disc, is the key component that moves to control the flow of liquids or gases. It typically moves vertically to open or close the valve.

• Materials: The gate can be made of a range of materials, including cast iron, stainless steel, or bronze, depending on the application’s requirements.

• Sealing Surface: The gate is typically designed with a metal-to-metal or soft seal depending on the application’s pressure and temperature requirements.

3. Stem

The stem is the rod that connects the gate to the actuator (manual or automated), allowing the operator to control the opening and closing of the valve.

• Function: It transfers the motion from the actuator to the gate to open or close the valve.

• Material: Typically made from stainless steel or carbon steel, designed to withstand corrosion and wear.

4. Bonnet

The bonnet is the part of the valve that covers the internal components, providing access to the valve for maintenance or repairs. It serves as the top section of the valve body, holding the stem in place.

• Material: Common materials include carbon steel, stainless steel, and ductile iron.

• Function: Protects the internal components and helps maintain a seal to prevent leaks.

Operating Instructions for the Gate Valve Series

Proper operation of gate valves is essential to ensure their longevity and reliable performance. Below is a step-by-step guide on how to operate the Gate Valve Series effectively.

1. Opening the Gate Valve

• Manual Operation: Use a handwheel or lever to rotate the stem and move the gate. Turning the handwheel in the counterclockwise direction will raise the gate, allowing the flow of fluid.

• Motorized Operation: For automated systems, a motorized actuator can be used. The motor will rotate the stem to open or close the valve, often controlled by a remote control system.

2. Closing the Gate Valve

• Manual Operation: To close the valve, rotate the handwheel or lever in the clockwise direction. This will lower the gate, sealing the valve and blocking fluid flow.

• Motorized Operation: For motorized systems, the actuator will reverse the direction of rotation to close the gate. Ensure that the valve is fully closed by monitoring the actuator.

3. Maintenance of the Gate Valve

• Regular Inspection: Periodically inspect the valve for any signs of wear, corrosion, or leaks. Ensure that the gate moves freely and the stem is properly lubricated.

• Lubrication: Apply appropriate lubricant to the stem and thread to ensure smooth operation and prevent wear.

• Cleaning: Clean the valve periodically to remove any debris or buildup that may affect its performance.

Material Specifications for the Gate Valve Series

The Gate Valve Series is made from a wide range of materials to suit various industrial applications. Selecting the appropriate material depends on factors such as temperature, pressure, and the type of fluid being transported.

1. Carbon Steel

• Applications: Ideal for moderate pressure and temperature conditions, carbon steel is commonly used in water and gas pipelines.

• Advantages: Strong, durable, and cost-effective.

• Limitations: Susceptible to corrosion in high-temperature and acidic environments.

2. Stainless Steel

• Applications: Used in applications where corrosion resistance is essential, such as in chemical processing or food and beverage industries.

• Advantages: Excellent resistance to corrosion, high temperatures, and durability.

• Limitations: More expensive than carbon steel.

3. Alloy Steel

• Applications: Suitable for high-pressure and high-temperature applications such as oil and gas pipelines.

• Advantages: Enhanced strength and resistance to wear, corrosion, and thermal expansion.

• Limitations: Can be more expensive than stainless steel, but is highly durable in extreme conditions.

4. Ductile Iron

• Applications: Often used for water supply systems and wastewater treatment.

• Advantages: Provides superior strength and toughness compared to standard cast iron.

• Limitations: Less resistant to high temperatures than steel-based materials.

Transportation Guidelines for the Gate Valve Series

The Gate Valve Series is an industrial product designed for long-lasting performance. Proper transportation is crucial to prevent any damage during transit. Here are key considerations:

1. Packaging

• Protective Packaging: Each valve should be individually wrapped in protective material to prevent scratches, dents, or damage during shipping.

• Crates and Boxes: Use sturdy crates or boxes to secure the valves during transit. Ensure the crates are of sufficient size to avoid movement during shipping.

2. Handling

• Use Appropriate Lifting Equipment: Gate valves, especially larger models, can be heavy and should be handled with appropriate lifting equipment (e.g., forklifts, hoists) to avoid injury or damage.

• Avoid Rough Handling: Always handle the valves carefully and avoid dropping or jarring them to maintain their integrity.

3. Storage Before Installation

• Dry and Clean Storage: Store the gate valves in a dry and clean area, away from direct sunlight and moisture. Excessive moisture can lead to corrosion, especially in materials like carbon steel.

• Avoid Exposure to Harsh Conditions: Ensure that the valves are not exposed to chemicals, extreme temperatures, or other harsh conditions before installation.

Technical Specifications for the Gate Valve Series

Conclusion

The Gate Valve Series is engineered to offer superior performance in various industrial applications, from oil and gas to water treatment and chemical processing. With a range of materials, sizes, and actuation options, these valves ensure that systems operate efficiently and reliably. By following the correct operational procedures, maintaining the valve properly, and considering material specifications, the Gate Valve Series will provide long-lasting service and high performance.

Ensure safe transportation and handling practices for the Gate Valve Series to prevent damage and ensure seamless integration into your industrial systems.
